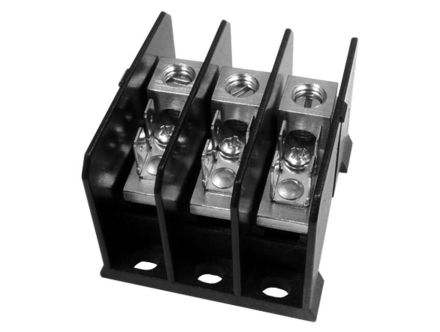

1323579CH Marathon Special Products Power Distribution Blocks
MFG #:
1323579CH
Splicer block, 3-P, 175A, Bx/Bx, Line: (1)2/0-14AWG Box Lug, Load: (1)2-14AWG Box Lug + (1)1/4in. Q.C.
Specifications
| Manufacturer Part Number | 1323579CH |
|---|---|
| Manufacturer | Marathon Special Products |
| Family Series | Marathon Special Products Power Distribution Blocks |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 175 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 2 |
| Electrical Connection | Screw/Screw |
| Mounting | DIN Rail/Panel Mount |
| Line Side Wire Range | 14-2/0 AWG |
| Output Wire Range | 1/4" Quick Connects; 14-2/0 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | CE, CSA, cULus |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description
Power Distribution Blocks, Series
Item #
1323579CH
Splicer block, 3-P, 175A, Bx/Bx,
Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
1323579 | Splicer Block, 3-P, 175A, Bx/Bx, Line: (1)2/0-14AWG Box Lug, Load: (1)2/0-14AWG Box Lug + (1)1/4in. Q/C | 600 VAC | DIN Rail/Panel Mount | 132 |
Price unavailable
|
