Leeson Motors, Three Phase TEFC Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

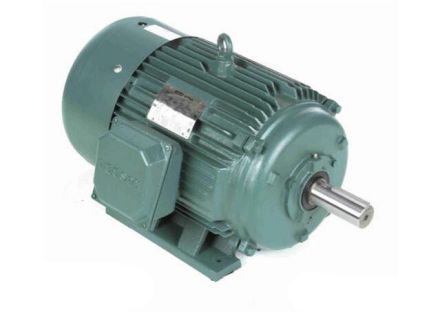

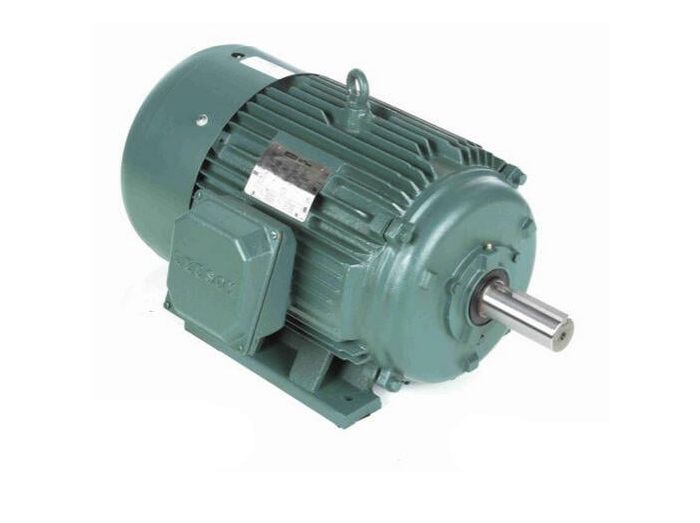

170068.60 Leeson Motors, Three Phase TEFC Series
Motor, 15HP, 208-230/460V, 1185RPM
MFG Item Number
170068.60
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Three Phase TEFC Series
Item #
170068.60
Motor, 15HP, 208-230/460V, 1185RPM
Three Phase TEFC Series Information
- Standard, EPACT and Premium efficient ratings
- Inverter‑rated
- Class B insulation systems ‑ 42, 48 and 56 frames
- Class F insulation system ‑ 140 frame and higher
- Shielded ball bearings for direct coupled applications
Applications: For use where exposure to water, dust and corrosives exists. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications.
- Continuous duty
- Dynamically balanced rotors
- 1‑year warranty on Standard efficient motors
- 2‑year warranty on EPACT efficient motors
- 3‑year warranty on Premium efficient motors
- Torques exceed NEMA performance standards
- UL recognized and CSA certified
Specifications
| Manufacturer Part Number | 170068.60 |
|---|---|
| Manufacturer | Leeson |
| Product Series | Three Phase TEFC |
| Family Series | Leeson Motors, Three Phase TEFC Series |
| Description | Motor, 15HP, 208-230/460V, 1185RPM TEFC Wattsaver |
| Type | General Purpose |
| Horsepower | 15 hp |
| Speed | 1,200 RPM |
| RPM | 1,200 RPM |
| Number of Poles | 6 |
| Phase | 3 |
| NEMA Frame | 284T |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 40.6 A |
| Service Factor | 1.25 |
| Composition | Cast Iron |
| Bearing Type | Ball |
| Length | 26.26 " |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
