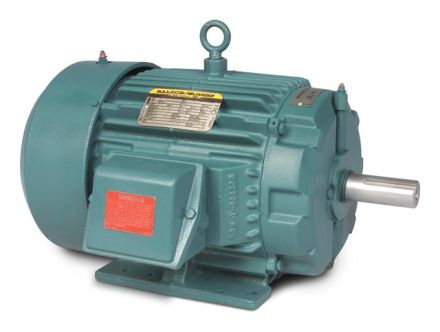

ECP4100T-4
Baldor-ABB Motors Motors, CP Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
ECP4100T-4 Baldor-ABB Motors Motors, CP Series
15HP, 1175RPM, 3PH, 60HZ, 284T, 1046M
MFG Item Number
ECP4100T-4
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, CP Series
Item #
ECP4100T-4
15HP, 1175RPM, 3PH, 60HZ, 284T, 1046M
CP Series Information
- Processing Industry Applications Requiring Protection against Corrosion Caused By Severe Environmental Operating Conditions
- Oversized Rotatable Cast Iron Conduit Box, Cast Iron Frames, Corrosion Resistant Hardware
- Corrosion Resistant Epoxy Finish
- Regreasable Ball or Roller Bearings
- 1.15 Service Factor
- Class F Insulation
Specifications
| Manufacturer Part Number | ECP4100T-4 |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | CP |
| Family Series | Baldor-ABB Motors Motors, CP Series |
| Description | 15HP, 1175RPM, 3PH, 60HZ, 284T, 1046M |
| Type | High Efficiency, Severe Duty |
| Horsepower | 15 hp |
| Speed | 1,200 RPM |
| RPM | 1,200 RPM |
| Number of Poles | 6 |
| Phase | 3 |
| NEMA Frame | 284T |
| AC Voltage | 460 VAC |
| Nominal Voltage | 415 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 19.8 A |
| Service Factor | 1.15 |
| Inverter Duty | No |
| Composition | Cast Iron |
| Bearing Type | Re-Greasable |
| Length | 27.93 " |
| Net Weight | 448 lbs |
| Gross Weight | 448 lbs |
