33-68167 Meltric Plugs & Receptacles, DS60 Series
Inlet, 60A, 120/208V, 3P+N+G, Poly,
MFG Item Number
33-68167
Meltric

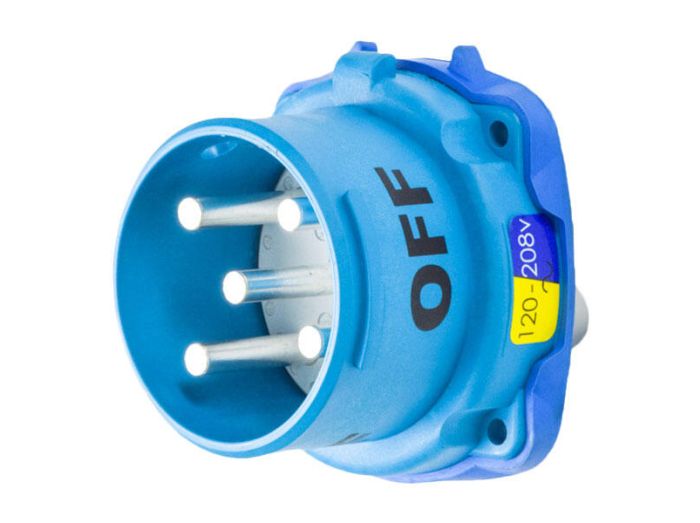

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

33-68167 Meltric Plugs & Receptacles, DS60 Series

Inlet, 60A, 120/208V, 3P+N+G, Poly,
MFG Item Number
33-68167
Meltric
Series
DS60
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Plugs & Receptacles, DS60 Series
Item #
33-68167
Inlet, 60A, 120/208V, 3P+N+G, Poly,

DS60 Series Information

  • 65kA to 100kA Short‑Circuit Rated
  • Metal or Poly Construction
  • Up to 5 Auxiliary Contacts
  • NEMA 3R IP54/IP55
  • 120~600 VAC Versions
  • UL & CSA Switch Rated
  • 60 Amps
DS Series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.



Links

Specifications

Specifications
Manufacturer Part Number 33-68167
Manufacturer Meltric
Product Series DS60
Family Series Meltric Plugs & Receptacles, DS60 Series
Description Inlet, 60A, 120/208V, 3P+N+G, Poly, DS60
Connection Type Inlet
Current Rating 60 A
Voltage 120 V, 208 V
Frequency 60 Hz
Auxiliary Contact None
Wire Size Range 2 AWG, 10 AWG
Material Non-Metallic
Operating Temperature -40-140 °F
Protection Rating IP54
Terminal Type Screw
Color Code Blue
NEMA Rating NEMA 3R
Approvals cCSAus, UL
H x W x D 3.50 " x 4.00 " x 4.05 "
Net Weight 0.97 lbs
Gross Weight 1.1 lbs
