43763

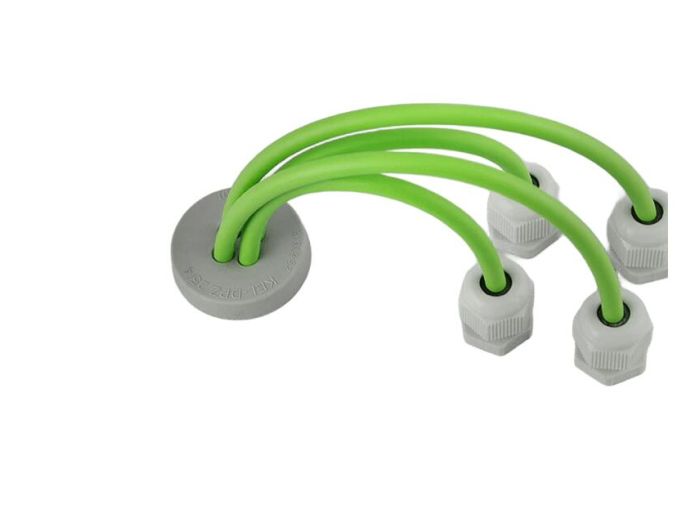

Icotek Cable Entries, KEL-DPZ Round Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
43763 Icotek Cable Entries, KEL-DPZ Round Series
Cable Entry Plate, M63x1.5, Gray,
MFG Item Number
43763
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Cable Entries, KEL-DPZ Round Series
Item #
43763
Cable Entry Plate, M63x1.5, Gray,
KEL-DPZ Round Series Information
- Dual Sealing of Cables According to IP66 / IP67 / IP68 / up to NEMA Type 4X
- Polyamide Locknuts Are Included in the Shipment
- Hygienic Design ‑ Free of Dirt‑Collecting Recesses
- Automatic Sealing and Strain Relief for the Cable
- Quick and Easy Tool‑Free Assembly
- Suitable for Metric Cut‑Outs
- High Cable Density
Specifications
| Manufacturer Part Number | 43763 |
|---|---|
| Manufacturer | Icotek |
| Product Series | KEL-DPZ Round |
| Family Series | Icotek Cable Entries, KEL-DPZ Round Series |
| Description | Cable Entry Plate, M63x1.5, Gray, Accepts (35)3.2-6.5mm Wires, NEMA 4X, KEL-DPZ63/35 |
| Total Number of Cables | 35 |
| Mounting | Locknut |
| Color | Gray |
| Under 5mm Dia Cables | 0 |
| 5-10mm Dia Cables | 32 |
| 10-15mm Dia Cables | 0 |
| Over 15mm Dia Cables | 0 |
| Cable Combinations | (35) 3.2-6.5 mm |
| NEMA Rating | NEMA 4X |
| Protection Rating | IP68 |
| Approvals | cURus |
| H x W x D | 0.90 " x 2.90 " x 3.20 " |
| Net Weight | 0.115 lbs |
| Gross Weight | 0.12 lbs |
