CP10.121
Puls Power Supplies, Dimension Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

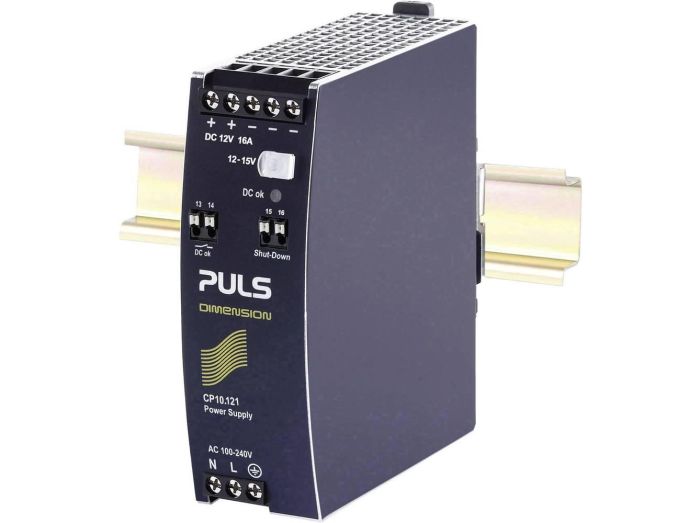

CP10.121 Puls Power Supplies, Dimension Series
Power Supply, 12VDC, 16A, 1Ph, 192W,
MFG Item Number
CP10.121
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Power Supplies, Dimension Series
Item #
CP10.121
Power Supply, 12VDC, 16A, 1Ph, 192W,
Dimension Series Information
- Single Output
- 12~72 VDC Outputs Available
- Up tp 40 Amp Outputs Available
- 100~552 VAC Inputs Available
- CE, UL and C‑UL Approvals
- DIN Rail Mount
- High Efficiency ‑ Up to 96%
- Single or Three Phase Units
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Manufacturer Part Number | CP10.121 |
| Manufacturer | Puls |
| Product Series | Dimension |
| Family Series | Puls Power Supplies, Dimension Series |
| Description | Power Supply, 12VDC, 16A, 1Ph, 192W, 100-240VAC Input, 12-15VDC Output, 124mmHx39mmWx117mmD |
| Power | 192 W |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| AC Voltage | 100-240 VAC |
| Input Frequency | 60 Hz |
| Phase | 1 |
| Nominal Output Voltage | 12 VDC |
| Output VDC | 12-15 VDC |
| Output Current | 16 A |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Output Voltage Adj. | Yes |
| Overvoltage Protection | No |
| Overload Protection | No |
| Short Circuit Protection | No |
| Power Factor Correction | Yes |
| Parallel Operation | No |
| Remote Sensing | No |
| Remote On/Off Control | No |
| Operating Temperature | -13-158 °F |
| H x W x D | 2.44 " x 5.51 " x 5.91 " |
| Net Weight | 1.365 lbs |
| Gross Weight | 1.5432 lbs |
