Meltric
Series
DSN20
63-14043-NC Meltric Plugs & Receptacles, DSN20 Series
MFG #:
63-14043-NC
RECEPTACLE, 20A, 480V, 3P+E RECEPTACLE ONLY, W/ CLOSED LID CONFI DSN20 DECONTACTOR, ACCEPTS 12-20AWG
View Full Specs

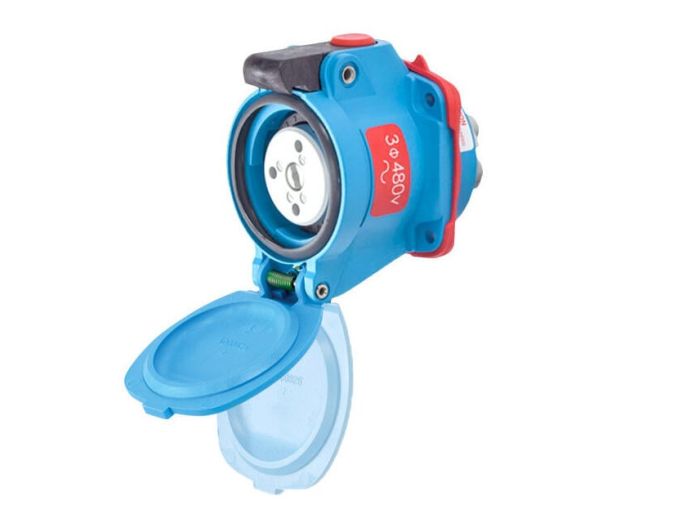

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Meltric
Series
DSN20

63-14043-NC Meltric Plugs & Receptacles, DSN20 Series

MFG #:
63-14043-NC
RECEPTACLE, 20A, 480V, 3P+E RECEPTACLE ONLY, W/ CLOSED LID CONFI DSN20 DECONTACTOR, ACCEPTS 12-20AWG
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number 63-14043-NC
Manufacturer Meltric
Product Series DSN20
Family Series Meltric Plugs & Receptacles, DSN20 Series
Connection Type Receptacle
Current Rating 20 A
Voltage 480 VAC
Frequency 60 Hz
Number of Poles 3
Number of Wires 4
Lockout-Tagout No
Auxiliary Contact None
Built-In Strain Relief No
Wire Size Range 12 AWG, 14 AWG
Material Non-Metallic
Operating Temperature -40-140 °F
Protection Rating IP66, IP67, IP69
Terminal Type Screw
Color Code Red
NEMA Rating NEMA 4X
Approvals cCSAus, UL
H x W x D 2.95 " x 2.35 " x 3.20 "
Net Weight 0.37 lbs
Gross Weight 0.47 lbs
