Specifications
| Manufacturer Part Number | 810011.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | NH-H-H1 |
| Family Series | Leeson Motors, NH-H-H1 Series |
| Type | Inverter Rated |
| Horsepower | 25 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Phase | 3 |
| NEMA Frame | 286TC |
| Nominal Voltage | 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Blower Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 65 A |
| Service Factor | 1 |
| Composition | Cast Iron |
| Length | 37.48 " |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description

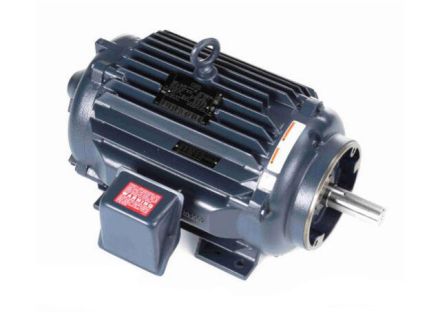

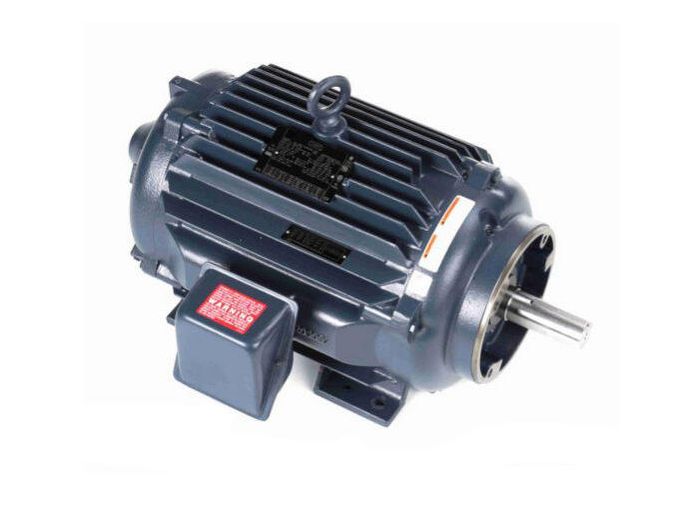

Motors, NH-H-H1 Series
Item #
810011.00
Motor, 25HP, , 1800RPM TEBC
NH-H-H1 Series Information
- Class H inverter rated insulation system
- Constant torque operation from 0 to base RPM rating with vector drives
- C Face with rigid base through 100 HP on LEESON models, Lincoln models through 10 HP
- TEBC designs utilize 3‑phase blower motors
- Normally enclosed thermostats
- Cast iron, Steel and Aluminum frame construction ‑ see Notes
- Provisions for Encoder feedback devices
- Precision balanced rotors
- UL recognized and CSA certified
