Specifications
| Manufacturer Part Number | Y569 |
|---|---|
| Manufacturer | Marathon Electric |
| Product Series | General Purpose |
| Family Series | Marathon Electric Motors, GENERAL PURPOSE Series |
| Type | Inverter Rated |
| Horsepower | 25 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Phase | 3 |
| NEMA Frame | 284T |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 63 A |
| Service Factor | 1 |
| Inverter Duty | Yes |
| Composition | Cast Iron |
| Bearing Type | Ball |
| Overload Protection | Thermostat |
| Length | 28.58 " |
| Approvals | CE, CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description

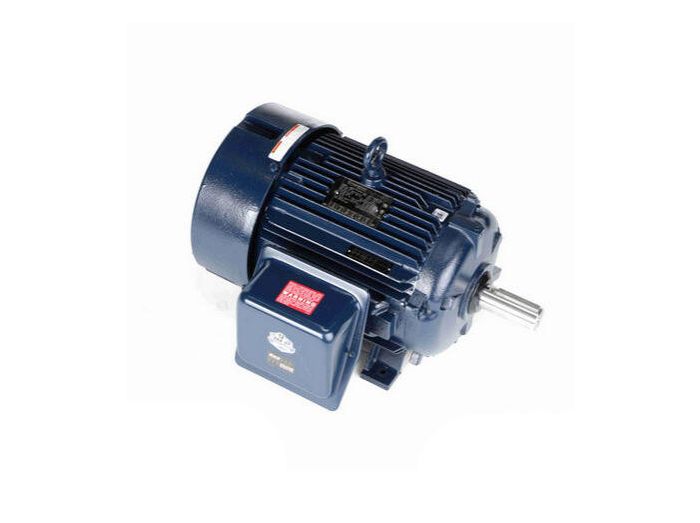

Motors, General Purpose Series
Item #
Y569
Motor
General Purpose Series Information
- 1/8~350 Horsepower
- 230, 230/460 or 575 VAC
- NEMA Frames 56~449
- Various Enclosure Types
- C‑Face/Rigid Mounting
- UL, CSA and CE Approvals
- Continuous Duty at 104 Degrees F Ambient
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
810011.00 | Motor, 25HP, , 1800RPM TEBC Inverter Duty | 240 VAC, 480 VAC | Foot Mount, Rigid | NH-H-H1 |
Quote Required
|
Added to Cart

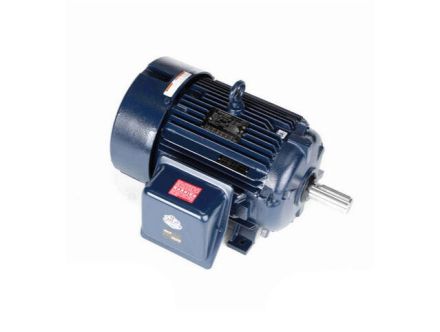

Y569 Marathon Electric Motors, GENERAL PURPOSE Series, Motor
