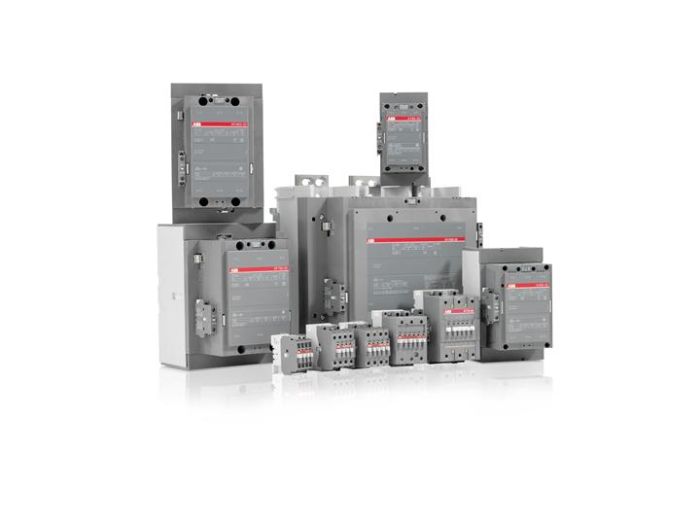

| Manufacturer Part Number | A110-30-11-84 |
|---|---|
| Manufacturer | ABB |
| Product Series | A |
| Family Series | ABB Contactors, A Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 110-120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | A110 |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Screw |
| Overload Relays | E140DU, TA110DU, TA80DU |
| General Purpose (AC1) | 140 A |
| UL Motor Switching (AC3) | 110 A |
| H x W x D | 5.12 " x 2.45 " x 5.51 " |
| Net Weight | 4.265 lbs |
| Gross Weight | 4.5 lbs |

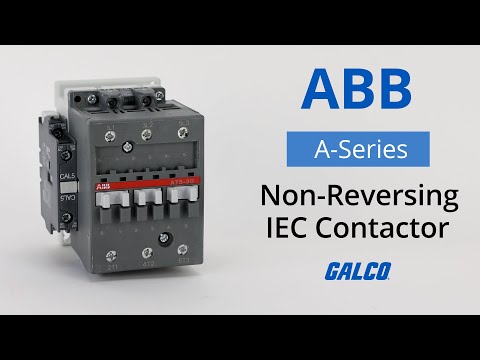

A Series Information
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
CWM105-00-30V18 | Contactor, 3-P N/O, 120VAC, 105A No Aux Contacts 40HP@230V/75HP@460V | CWM | AC Non-Reversing IEC |
Price unavailable
|
|
|
AF116-30-11-13 | A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 100-250 V, 50/60 Hz and DC | AF | AC Non-Reversing IEC |
Price unavailable
|
|
|
CE15MN3A | Eaton XT IEC contactor, 105A, 110-120 Vac, 50-60 Hz, 105A, Frame M, 160 mm, 50-60 Hz, 10 hp, Steel mounting plate, Three-pole, Non-reversing, No overload relay, Freedom, Contactor | Freedom | AC Non-Reversing IEC |
Price unavailable
|
Compare compatible accessories for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
BEM110-30 | Reversing Connection Kit, For Use with A/AE/AL95-A/AE/AL110 Contactors Insultated, Solid Copper Bars | ABB Contactors |
Quote Required
|
||
|
CAL18-11 | Auxiliary Contact, 1NO/1NC, Side Mount, For Use with A/AF95-AF2050, 1SFN010720R1011 | ABB Contactors | Auxiliary Contact |
Price unavailable
|
|
|
VM300H | Mechanical Interlock, Horizontal | ABB Contactors | Mechanical Interlock |
Price unavailable
|
|
|
ZA110-84 | REPLACEMENT COIL, 120VAC | ABB Contactors | Coil |
Price unavailable
|
