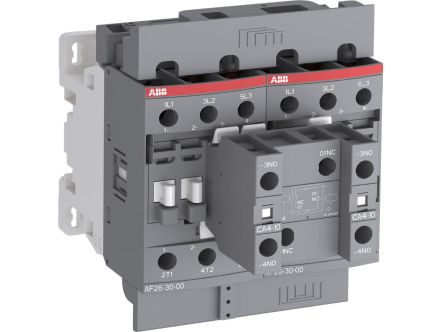

AF09R-30-22-13 ABB Contactors, AF Series
MFG #:
AF09R-30-22-13
REV, 3P, 9A, 100-250VAC/DC, 2/2
View Full Specs

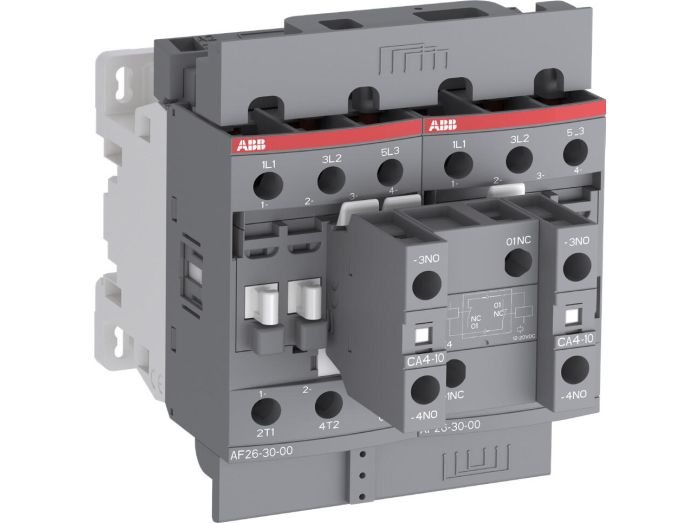

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
AF

AF09R-30-22-13 ABB Contactors, AF Series

MFG #:
AF09R-30-22-13
REV, 3P, 9A, 100-250VAC/DC, 2/2
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number AF09R-30-22-13
Manufacturer ABB
Product Series AF
Family Series ABB Contactors, AF Series
Type AC Reversing IEC
Nominal Coil Voltage 120 VAC, 240 VAC, 110 VDC, 250 VDC
Coil Voltage 100-250 VAC, 100-250 VDC
Coil Type Electronic
Poles 3NO
Auxiliary Contact 1NO, 1NC
Termination Screw Terminal
General Purpose (AC1) 25 A
Approvals cULus
H x W x D 4.05 " x 3.55 " x 4.05 "
Net Weight 1.46 lbs
Gross Weight 1.725 lbs
