ABB
Series
AF
AF09Z-40-00-20 ABB Contactors, AF Series
MFG #:
AF09Z-40-00-20
AF09Z 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads i.e. resistance furnaces.... AF..Z contactors include an electronic coil
View Full Specs

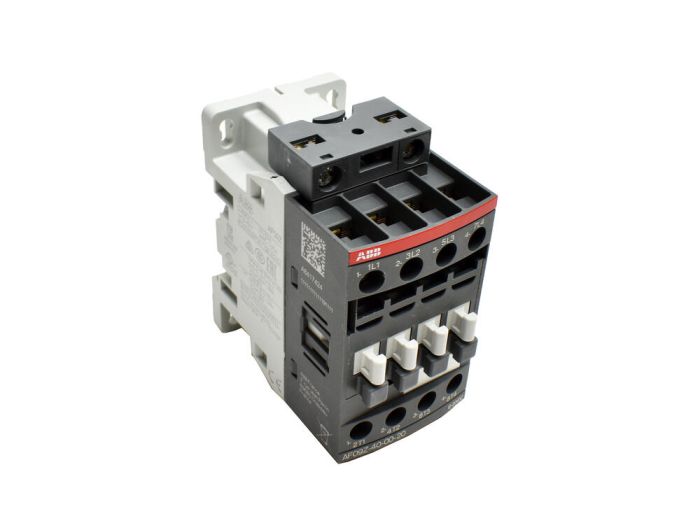

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
AF

AF09Z-40-00-20 ABB Contactors, AF Series

MFG #:
AF09Z-40-00-20
AF09Z 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads i.e. resistance furnaces.... AF..Z contactors include an electronic coil
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number AF09Z-40-00-20
Manufacturer ABB
Product Series AF
Family Series ABB Contactors, AF Series
Type AC Non-Reversing IEC
Nominal Coil Voltage 12 VDC
Coil Voltage 12-20 VDC
Coil Type Electronic
Poles 4NO
Auxiliary Contact None
Termination Screw
General Purpose (AC1) 25 A
Approvals cULus
H x W x D 1.85 " x 3.11 " x 3.43 "
Net Weight 0.68 lbs
Gross Weight 0.72 lbs
