ABB
Series
AF
AF09ZR-30-22-21 ABB Contactors, AF Series
MFG #:
AF09ZR-30-22-21
REV, 3P, 9A, LOW20-60VDC/24-60VAC, 2/2
View Full Specs

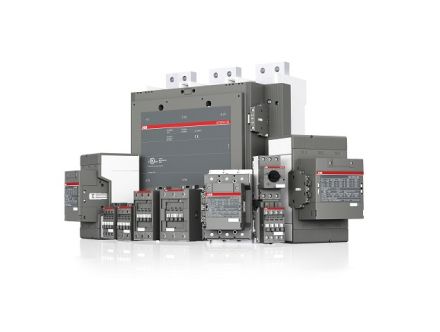

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
AF

AF09ZR-30-22-21 ABB Contactors, AF Series

MFG #:
AF09ZR-30-22-21
REV, 3P, 9A, LOW20-60VDC/24-60VAC, 2/2
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number AF09ZR-30-22-21
Manufacturer ABB
Product Series AF
Family Series ABB Contactors, AF Series
Type AC Reversing IEC
Nominal Coil Voltage 24 VAC, 48 VAC, 24 VDC, 48 VDC
Coil Voltage 24-60 VAC, 20-60 VDC
Coil Type Electronic
Poles 3NO
Auxiliary Contact 1NO, 1NC
Termination Screw Terminal
General Purpose (AC1) 25 A
Approvals cULus
H x W x D 8.00 " x 8.00 " x 8.00 "
Net Weight 5 lbs
Gross Weight 2.49 lbs
