AF265N5-30-11-13
ABB Contactors, AF Series

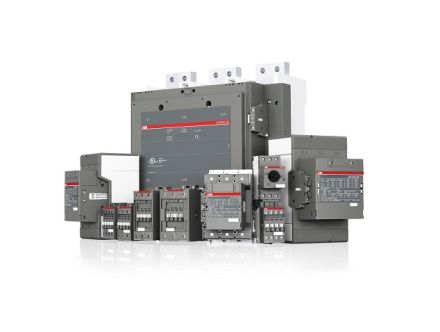

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
AF265N5-30-11-13 ABB Contactors, AF Series
NEMA, SZ5, 100-250VAC/DC, 1/1
MFG Item Number
AF265N5-30-11-13
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Contactors, AF Series
Item #
AF265N5-30-11-13
NEMA, SZ5, 100-250VAC/DC, 1/1
AF Series Information
- 4 Coils Cover 24 V ‑ 500 V AC and 20 V ‑ 500 V DC
- 24 V DC Coil for Direct Control by PLC‑Output > 250 mA, Low Holding Consumption up to 1.7 W
- Mirror, Mechanically Linked Contacts
- Built‑in Surge Suppression
- Up to 560 kW ‑ 400 V AC‑3, 900 hp ‑ 480 V and 2850 A ‑ 690 V AC‑1, 2850 A ‑ General Use
Specifications
| Country of Origin | Sweden |
|---|---|
| Manufacturer Part Number | AF265N5-30-11-13 |
| Manufacturer | ABB |
| Product Series | AF |
| Family Series | ABB Contactors, AF Series |
| Description | Contactor, Size 5, 100-250VAC/DC, Includes 2NO & 1NC Aux Contacts, Open, NEMA Size 5 |
| Type | AC Non-Reversing NEMA |
| Nominal Coil Voltage | 120 VAC, 208 VAC, 240 VAC, 125 VDC |
| Coil Voltage | 100-250 VAC, 100-250 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Box Lug |
| NEMA Frame Size | 5 |
| H x W x D | 1.90 " x 3.40 " x 3.40 " |
| Net Weight | 0.75 lbs |
| Gross Weight | 0.75 lbs |
