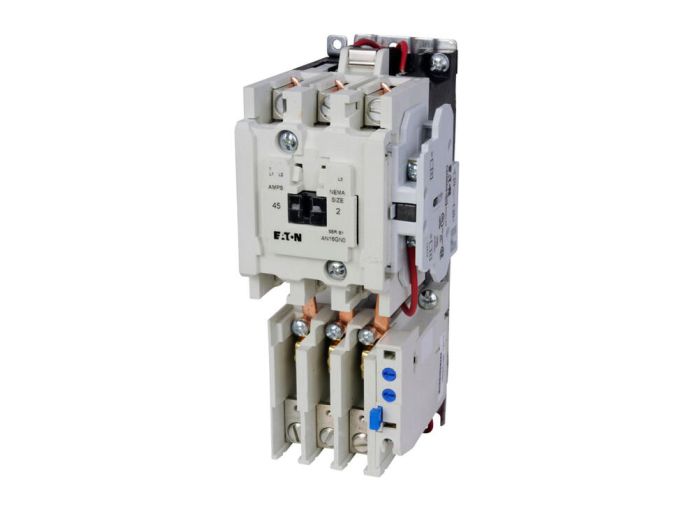

AN16GN0AB Eaton Starters, Freedom Series

MFG #:

AN16GN0AB

Eaton Freedom NEMA motor control starter, Non-Reversing Reset Overload Relay Starter, 120V/60 Hz or 110V/50 Hz coil voltage, 45A, Three-pole, Size 2

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

Freedom

AN16GN0AB Eaton Starters, Freedom Series

Name: AN16GN0AB Eaton Starters, Freedom Series
Brand: Eaton
SKU: AN16GN0AB-CHGP
Price: 2139.78 USD
Availability: InStock

MFG #:

AN16GN0AB

Eaton Freedom NEMA motor control starter, Non-Reversing Reset Overload Relay Starter, 120V/60 Hz or 110V/50 Hz coil voltage, 45A, Three-pole, Size 2

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	AN16GN0AB
Manufacturer	Eaton
Product Series	Freedom
Family Series	Eaton Starters, Freedom Series
Style	Open
Industry Standard	NEMA
Poles	3
Voltage	120 VAC
Nominal Voltage	120 VAC
Current Rating	45 A
Overload Type	Thermal
Overload Series	C306
Termination	Screw
NEMA Frame Size	2
Mounting	Surface
H x W x D	4.38 " x 3.31 " x 4.94 "
Net Weight	3.3 lbs
Gross Weight	4.015 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	Poles	Price
C306GN3B	Eaton Freedom NEMA overload relay, 60 - 79A, Three-pole, NEMA Size 1, 2, IEC Size G-K , Panel Mounted or Starter Replacement mounting	Eaton Overload Relays	3	Price unavailable
H2001B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 0.254A 0.306A 0.359A 0.411A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2003B-3	Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 0.56A 0.676A 0.791A 0.907A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2004B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 0.814A/0.983A/1.15A/1.32A, Dial positions A B C D respectively, overload relay 32 or 75 A	Eaton Overload Relays		Price unavailable
H2005B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 1.2A 1.45A 1.71A 1.96A Dial positions A B C D respectively, overload relay 32 or 75A PK/3	Eaton Overload Relays		Price unavailable
H2006B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 1.79A 2.16A 2.53A 2.9A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2007B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 2.15A 2.6A 3.04A 3.49A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2008B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 3.23A 3.9A 4.56A 5.23A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2009B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 4.55A 5.5A 6.45A 7.4A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2010B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 6.75A 8.17A 9.58A 11A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2011B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 9.14A 10.8A 12.4A 14A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2012B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 14A 16.9A 19.9A 22.8A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2013B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 18.7A 22.7A 26.7A 30.7A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2014B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 23.5A 28.5A 33.5A 38.5A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2015B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 29A 34A 39.1A 44.1A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays		Price unavailable
H2016B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 39.6A 45.5A 51.5A 57.4A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays		Price unavailable
H2017B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 53.9A 60.9A 67.9A 74.9A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays		Price unavailable
H2105B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 1.28A 1.55A 1.83A 2.1A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2106B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 1.92A 2.33A 2.74A 3.15A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2107B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 2.3A 2.79A 3.28A 3.77A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2108B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 3.38A 4.1A 4.82A 5.54A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2109B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 4.96A 6.03A 7.09A 8.16A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2110B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 7.07A 8.58A 10.1A 11.6A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2111B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 9.6A 11.2A 12.8A 14.4A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2112B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 14.4A 17.5A 20.7A 23.8A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2113B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 18.7A 21.8A 25A 28.1A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2114B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 23.5A 27.3A 31A 34.8A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays		Price unavailable
H2116B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 36.6A 42.3A 48.1A 53.8A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays		Price unavailable
H2117B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 53.8A 60.8A 67.9A 74.9A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays		Price unavailable
