Series Commander C200
C200-02400023A10101AB100
MFG #: C200-02400023A10101AB100

Create a free account or sign in to unlock our best online pricing!

Your account pricing is now applied.

866-354-0063 [email protected]
866-354-0063 [email protected]
Search
Request Quote
Cart
Control Techniques
Series
Commander C200
C200-02400023A10101AB100 Control Techniques Drives, Commander C200 Series
MFG #:
C200-02400023A10101AB100
Drive, AC, 1.0HP, 480V, 2.3A, CT, OP 480Vin 3PH 1.0HP 2.3A VT W/DB Trans 8.1in.Hx3.1in.Wx5.9in.D
View Full Specs

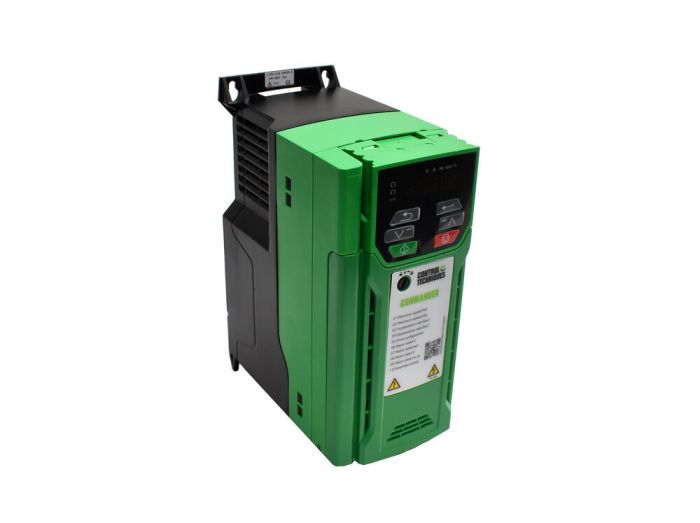

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Control Techniques
Series
Commander C200

C200-02400023A10101AB100 Control Techniques Drives, Commander C200 Series

MFG #:
C200-02400023A10101AB100
Drive, AC, 1.0HP, 480V, 2.3A, CT, OP 480Vin 3PH 1.0HP 2.3A VT W/DB Trans 8.1in.Hx3.1in.Wx5.9in.D
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number C200-02400023A10101AB100
Manufacturer Control Techniques
Product Series Commander C200
Family Series Control Techniques Drives, Commander C200 Series
Phase 3
HP (Constant Torque Rating) 1 hp
HP (Variable Torque Rating) 1 hp
Amps (Constant Torque Rating) 2.3 A
Amps (Variable Torque Rating) 2.3 A
Brake DC Injection, Dynamic Braking
Closed Loop No
AC Line Regenerative No
Operator Controls Built In
Motor Control-Max Level Open Loop Rotor Flux Control
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 550 Hz
Frame Size 2
Protection Rating IP20
Dynamic Braking Included
Height 8.07 "
Width 2.95 "
Depth 5.9 "
H x W x D 6.00 " x 4.00 " x 9.00 "
Net Weight 3.22 lbs
Gross Weight 3.19 lbs
