Specifications
| Manufacturer Part Number | C25DNF350A |
|---|---|
| Manufacturer | Eaton |
| Product Series | C25 |
| Family Series | Eaton Contactors, C25 Series |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 110-120 VAC |
| Inductive Current Rating | 50 A |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | D |
| Termination | Box Lug, Quick Connect |
| Shunt | No |
| Enclosure | Open |
| Resistive Rating | 65 A |
| Approvals | CSA, UR |
| H x W x D | 3.35 " x 2.40 " x 3.75 " |
| Net Weight | 1.3 lbs |
| Gross Weight | 1.3 lbs |
Description

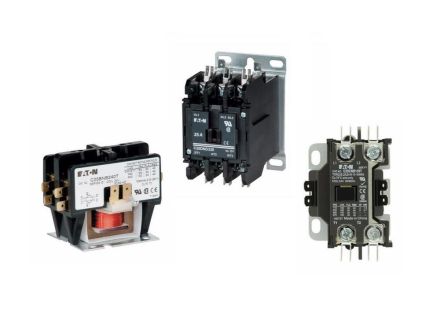

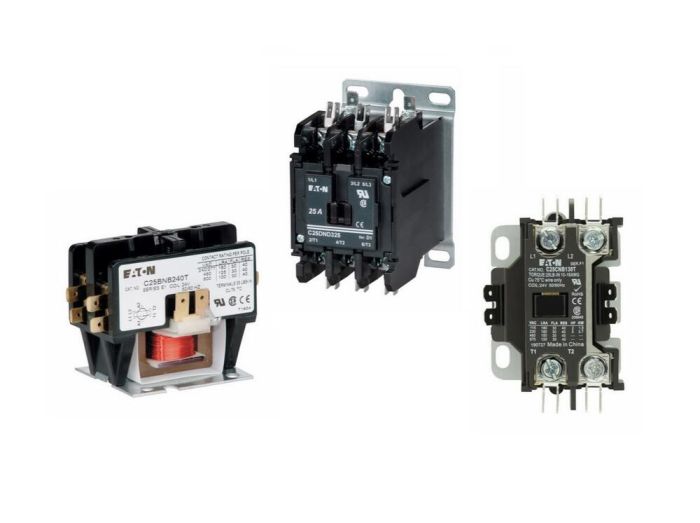

Contactors, C25 Series
Item #
C25DNF350A
DP Contactor, 3-P N/O, 120VAC, 50A
C25 Series Information
- 24~480 VAC Coils
- Up to 7‑1/2 HP @ 230V
- Up to 5.5 KW @ 230V
- UL; CSA Certified; IEC
- Up to 50 Amps
- Quick Connect Terminals
- Open Enclosure
- Double Break Contacts
- Class B Magnetic Coil
