Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

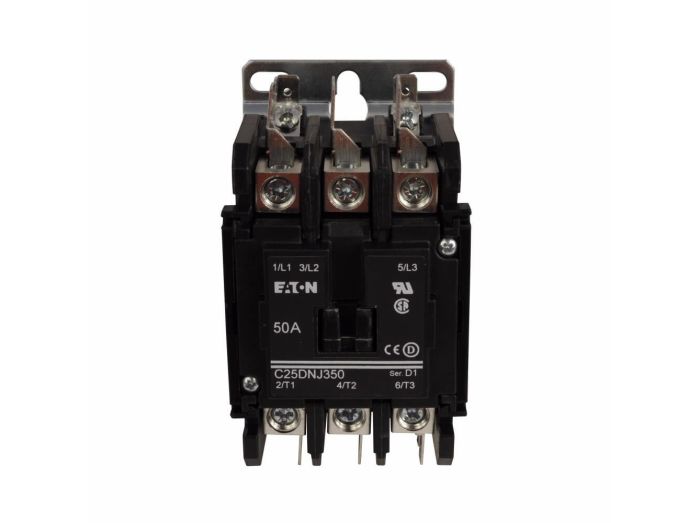

C25DNJ350A Eaton Contactors, C25 Series
MFG #:
C25DNJ350A
Eaton definite purpose contactor, Quick, 50A, 550-600 Vac, 50/60 Hz, 1NC, Open with metal mounting plate, 15-50A, two- and three-pole, 50A, Contactor, Three-pole, 65A, Box lugsposidrive setscrew and quick connect terminals , Non-reversing
Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | C25DNJ350A |
| Manufacturer | Eaton |
| Product Series | C25 |
| Family Series | Eaton Contactors, C25 Series |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 110-120 VAC |
| Inductive Current Rating | 50 A |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | D |
| Termination | Box Lug, Quick Connect |
| Shunt | No |
| Enclosure | Open |
| Resistive Rating | 65 A |
| Approvals | CSA, UR |
| H x W x D | 3.75 " x 2.60 " x 4.00 " |
| Net Weight | 1.1 lbs |
| Gross Weight | 1.19 lbs |
Description
Contactors, C25 Series
Item #
C25DNJ350A
OP N-R 3P 50ADPCNT BXLGS W/VRT QC120AC
C25 Series Information
- 24~480 VAC Coils
- Up to 7‑1/2 HP @ 230V
- Up to 5.5 KW @ 230V
- UL; CSA Certified; IEC
- Up to 50 Amps
- Quick Connect Terminals
- Open Enclosure
- Double Break Contacts
- Class B Magnetic Coil
