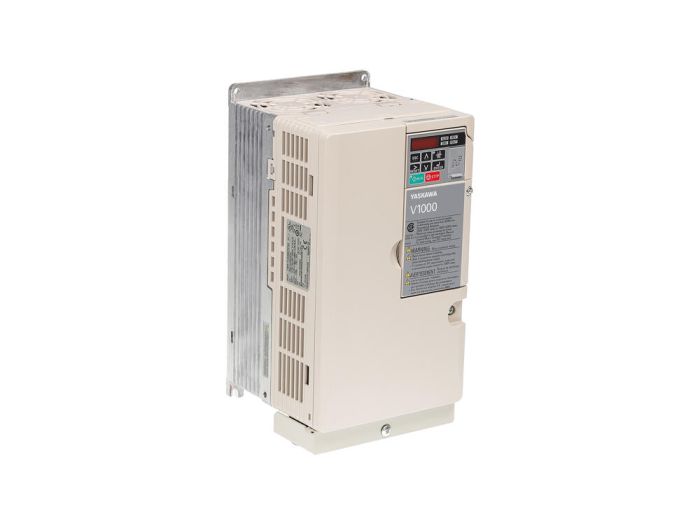

CIMR-VU4A0023FAA
Yaskawa Drives, V1000 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
CIMR-VU4A0023FAA Yaskawa Drives, V1000 Series
Drive, AC, 10HP, 480V, 3PH, 19.2A,
MFG Item Number
CIMR-VU4A0023FAA
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Drives, V1000 Series
Item #
CIMR-VU4A0023FAA
Drive, AC, 10HP, 480V, 3PH, 19.2A,
V1000 Series Information
- Compact Drive
- Open Loop Vector
- 1/4~25 HP
- 240V or 480V, 1PH & 3PH
- NEMA 1
Specifications
| Manufacturer Part Number | CIMR-VU4A0023FAA |
|---|---|
| Manufacturer | Yaskawa |
| Product Series | V1000 |
| Family Series | Yaskawa Drives, V1000 Series |
| Description | Drive, AC, 10HP, 480V, 3PH, 19.2A, CT, N1 15HP, 24A, VT 10.00in.Hx5.51in.Wx5.51in.D |
| Phase | 3 |
| HP (Constant Torque Rating) | 10 hp |
| HP (Variable Torque Rating) | 15 hp |
| Amps (Constant Torque Rating) | 19.2 A |
| Amps (Variable Torque Rating) | 24 A |
| Brake | DC Injection, Dynamic Braking Transistor Included |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| NEMA Rating | NEMA 1 |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Frequency | 400 Hz |
| Dynamic Braking | Included |
| Height | 10 " |
| Width | 5.51 " |
| Depth | 5.51 " |
| Net Weight | 7.52 lbs |
| Gross Weight | 9.95 lbs |
