Series

V1000

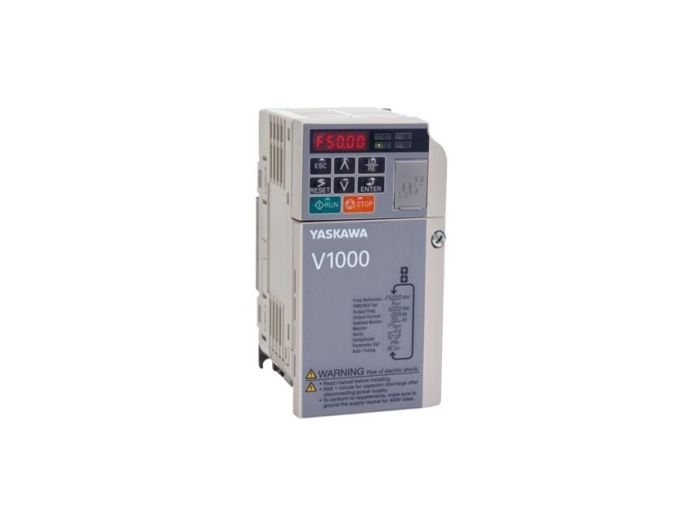

CIMR-VU4A0038FAA Yaskawa Drives, V1000 Series

MFG #:

CIMR-VU4A0038FAA

Drive, AC, 20HP, 480V, 3PH, 31.7A, CT, N1 25HP, 38A, VT 11.42in.Hx7.09in.Wx6.42in.D

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Series

V1000

CIMR-VU4A0038FAA Yaskawa Drives, V1000 Series

Name: CIMR-VU4A0038FAA Yaskawa Drives, V1000 Series
Brand: Yaskawa
SKU: CIMR-VU4A0038FAA-YASK

MFG #:

CIMR-VU4A0038FAA

Drive, AC, 20HP, 480V, 3PH, 31.7A, CT, N1 25HP, 38A, VT 11.42in.Hx7.09in.Wx6.42in.D

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	CIMR-VU4A0038FAA
Manufacturer	Yaskawa
Product Series	V1000
Family Series	Yaskawa Drives, V1000 Series
Phase	3
HP (Constant Torque Rating)	20 hp
HP (Variable Torque Rating)	25 hp
Amps (Constant Torque Rating)	31.7 A
Amps (Variable Torque Rating)	38 A
Brake	DC Injection, Dynamic Braking Transistor Included
Closed Loop	No
AC Line Regenerative	No
Operator Controls	Built In
NEMA Rating	NEMA 1
Motor Control-Max Level	Open Loop Vector (Sensorless Vector)
Mounting	Panel
Nominal Input Voltage	380 VAC, 415 VAC, 480 VAC
AC Voltage	380-480 VAC
Frequency	400 Hz
Dynamic Braking	Included
Height	11.42 "
Width	7.09 "
Depth	6.42 "
H x W x D	6.42 " x 7.09 " x 11.42 "
Net Weight	13.6 lbs
Gross Weight	14.6 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Mounting	Series	Price
DVTP0027E	dV E-Series, 208-600V, 27A, 2-4kHz, Open Panel	Surface	dv E	Price unavailable
RLW-002803	Reactor, 28A, 0.820mH, 3Ph, Open	Surface	RLW	Price unavailable
RLW-002805	Reactor, 28A, 1.300mH, 3Ph, Open	Surface	RLW	Price unavailable
