CS10.243 Puls Power Supplies, Dimension Series
POWER SUPPLY, 24VDC, 10A, 1PH, 240W
MFG Item Number
CS10.243
Puls

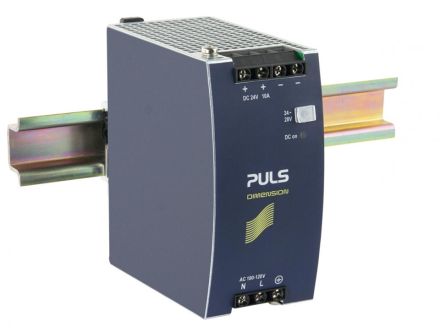

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

CS10.243 Puls Power Supplies, Dimension Series

POWER SUPPLY, 24VDC, 10A, 1PH, 240W
MFG Item Number
CS10.243
Puls
Series
Dimension
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Power Supplies, Dimension Series
Item #
CS10.243
POWER SUPPLY, 24VDC, 10A, 1PH, 240W

Dimension Series Information

  • Single Output
  • 12~72 VDC Outputs Available
  • Up tp 40 Amp Outputs Available
  • 100~552 VAC Inputs Available
  • CE, UL and C‑UL Approvals
Puls DIMENSION Series power supplies are unusually compact and many features were specifically developed with long service life and high reliability in mind. The compactness of these units create additional space, giving end users more design freedom. The DIMENSION Series is an economical and ecological choice for OEMs and users alike, offering a variety of power supplies in one and three phase models.

  • DIN Rail Mount
  • High Efficiency ‑ Up to 96%
  • Single or Three Phase Units


Links

Videos

Specifications

Specifications
Country of Origin China
Manufacturer Part Number CS10.243
Manufacturer Puls
Product Series Dimension
Family Series Puls Power Supplies, Dimension Series
Description POWER SUPPLY, 24VDC, 10A, 1PH, 240W 100-120VAC INPUT 124mmHx60mmWx117mmD, SCREW TERMINAL
Power 240 W
Nominal Input Voltage 120 VAC
AC Voltage 100-120 VAC
Input Frequency 47-63 Hz
Phase 1
Nominal Output Voltage 24 VDC
Output VDC 24-28 VDC
Output Current 10 A
Number of Outputs 1
Mounting DIN Rail
Enclosed Yes
Encapsulated No
Output Voltage Adj. Yes
Overvoltage Protection Yes
Overload Protection Yes
Short Circuit Protection Yes
Power Factor Correction No
Parallel Operation No
Remote Sensing No
Remote On/Off Control No
Operating Temperature 32-158 °F
Approvals CCC, CE, cURus, UL1604 CLASS 1 DIV 2, UL508, UL60950
H x W x D 3.66 " x 5.51 " x 5.91 "
Net Weight 1.5431 lbs
Gross Weight 1.7637 lbs
