Specifications
| Manufacturer Part Number | CWM105-00-30V24 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | CWM |
| Family Series | WEG Electric Contactors, CWM Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 208 VAC, 240 VAC |
| Coil Voltage | 208-240 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | CWM105 |
| Auxiliary Contact | None |
| Termination | Screw |
| Overload Relays | RW117-1D3 |
| General Purpose (AC1) | 140 A |
| UL Motor Switching (AC3) | 105 A |
| H x W x D | 4.70 " x 3.00 " x 4.95 " |
| Net Weight | 3.175 lbs |
| Gross Weight | 3.175 lbs |
Description

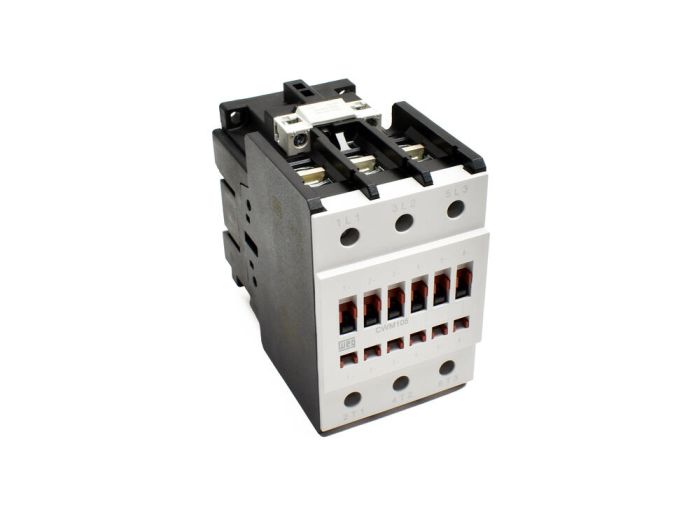

Contactors, CWM Series
Item #
CWM105-00-30V24
Contactor, 3-P N/O, 208-240VAC, 105A
CWM Series Information
- 24~600 VAC/VDC Coils
- Up to 300 HP @ 240V
- Up to 600 HP @ 460V
- UL, IEC, CE Approved
- Up to 800 Amps
- IP20 Finger Protection
- CSA Certified
Documents & Resources Links
Videos
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
BAMRC9-D63 | Surge Block, RC, 130-250VAC | Surge Suppressor |
Price unavailable
|
||
|
|
BCA-105V24 | Coil 208-240VAC | Coil |
Price unavailable
|
||
|
BCXMF01 | Auxiliary Contact Block, 1NC, Front | Auxiliary Contact |
Price unavailable
|
||
|
BCXMF10 | Auxiliary Contact Block, 1NO, Front/ Top Mount | Auxiliary Contact |
Price unavailable
|
||
|
BCXMFA10 | Auxiliary Contact Block, 1NO, Front | Auxiliary Contact |
Price unavailable
|
||
|
BCXMFR01 | Auxiliary Contact Block, 1NC, Front | Auxiliary Contact |
Price unavailable
|
||
|
BCXML11 | Auxiliary Contact Block, 1NO/1NC, Side Mount, Mounts to Contactor | Auxiliary Contact |
Price unavailable
|
||
|
BCXML20 | Auxiliary Contact Block, 2NO, Side Mount | Auxiliary Contact |
Price unavailable
|
||
|
BCXMRL11 | Auxiliary Contact Block, 1NO/1NC, Side Mount, Mounts to Existing Aux Block-Does not Mnt to Contactot | Auxiliary Contact |
Price unavailable
|
||
|
BCXMRL20 | Auxiliary Contact Block, 2NO, Side | Auxiliary Contact |
Price unavailable
|
||
|
RW117-1D3-U080 | Overload, Bim Ol Relay Class10 63-80 | RW | Bimetallic |
Price unavailable
|
|
|
RW117-1D3-U097 | Overload, Bim Ol Relay Class10 75-97 | RW | Bimetallic |
Price unavailable
|
|
|
RW117-1D3-U112 | Overload, Bim Ol Relay Class10 | RW | Bimetallic |
Price unavailable
|
|
|
RWM112E-3-A4U056 | Electronic Overload, 14A-56A | RWM |
Price unavailable
|
||
|
RWM112E-3-A4U112 | Electronic Overload, 28A-112A | RWM |
Price unavailable
|
