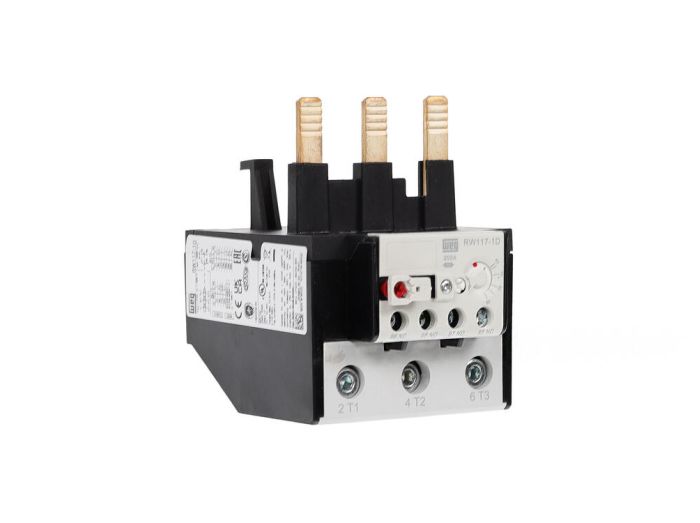

Specifications
| Manufacturer Part Number | RW117-1D3-U080 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | RW |
| Family Series | WEG Electric Overload Relays, RW Series |
| Type | Bimetallic |
| Current Rating | 63-80 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Screw Terminals |
| Ambient Temperature | -4-158 °F |
| Approvals | cUL, UL |
| H x W x D | 3.80 " x 2.95 " x 4.00 " |
| Net Weight | 1.078 lbs |
| Gross Weight | 1.078 lbs |
Description
Overload Relays, RW Series
Item #
RW117-1D3-U080
Overload, Bim Ol Relay Class10 63-80
RW Series Information
- Bimetallic Amb. Compensated
- Convertible Manual/Auto Reset
- Setting Ranges Up To 840 Amps
- Tripping Class 10A
- UL, IEC, CE Approvals
- Variety of Accessories Available
Documents & Resources Links
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
|
BF117D | Overload, Individual Base Mounting | WEG Electric Relays | Mounting Base |
Price unavailable
|
