DCS800-S02-0350-05 ABB Drives, DCS800 Series
DCS800-S02 230/460V 200HP 333A IP00
MFG Item Number
DCS800-S02-0350-05
ABB

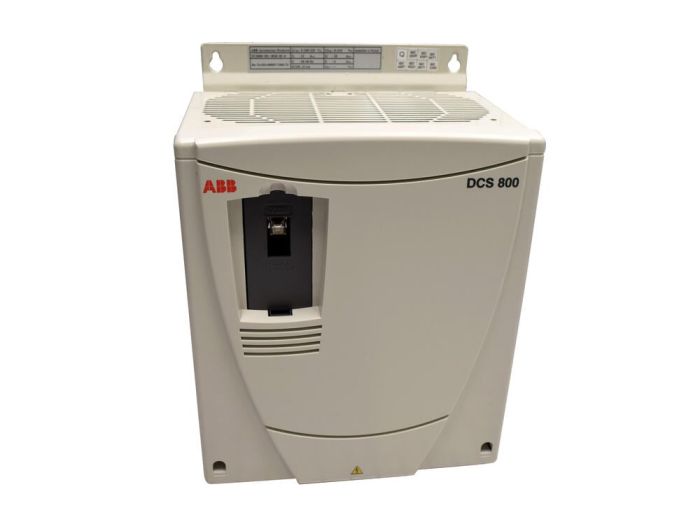

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

DCS800-S02-0350-05 ABB Drives, DCS800 Series

DCS800-S02 230/460V 200HP 333A IP00
MFG Item Number
DCS800-S02-0350-05
ABB
Series
DCS800
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Drives, DCS800 Series
Item #
DCS800-S02-0350-05
DCS800-S02 230/460V 200HP 333A IP00

DCS800 Series Information

  • 5~2250 Horsepower
  • 240 or 480 VAC Input
  • Regenerative Models Available
  • Chassis (IP00) Type
  • UL, CSA, CE Approvals
The DCS800 DC industrial drive combines the newest control technology with a thyristor power platform that has been factory‑proven all over the world. The DCS800 boasts a wider power range than any other DC drive on the market. The hardware and software are designed with the user in mind. Special features make installation and configuration simple and allow you to customize the application to your needs.

  • Armature/Tachometer/Encoder Feedback
  • RS‑232 Communication

Links

Specifications

Specifications
Manufacturer Part Number DCS800-S02-0350-05
Manufacturer ABB
Product Series DCS800
Family Series ABB Drives, DCS800 Series
Description MODULE DRIVE 4-QUADRANT REVERSING, Product Family: DCS800, Horsepower: 75 HP 230 VAC / 200 HP 460 VAC, Output Current: 333 A 240 VDC / 333 A 500 VDC, Voltage: 230 VAC/240 VDC 460 VAC/500 VDC, UL TYPE OPEN IP00, Mounting: Wall-mount, 3-Phase
AC Voltage 240 VAC, 480 VAC
Input Current 286 A
Output Armature Voltage (DC) 240 VDC, 500 VDC
Phase 3
Output Field Current (DC) 20 A
Operating Temperature 32-104 °F
Max Armature Current (DC) 264 A, 285 A
Nominal Input Voltage 240 VAC, 480 VAC
Field Supply Regulated
Regen Yes
Feedback Armature, Encoder, Tachometer
Operator Controls Keypad Included
Approvals CE, CSA, UL
Nominal Armature VDC 250 VDC, 500 VDC
H x W x D 15.00 " x 15.00 " x 21.00 "
Net Weight 62 lbs
Gross Weight 62 lbs
