Specifications
| Manufacturer Part Number | EHDB360C-1L |
|---|---|
| Manufacturer | ABB |
| Product Series | EHDB |
| Family Series | ABB Contactors, EHDB Series |
| Coil Type | Magnetic |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Poles | 2NO, 1NC |
| Mechanically Interlocked | No |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Box Lug |
| H x W x D | 9.84 " x 4.04 " x 11.81 " |
| Net Weight | 12.96 lbs |
| Gross Weight | 14.33 lbs |
Description
Contactors, EHDB Series
Item #

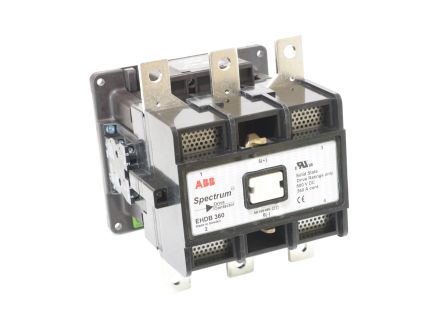

EHDB360C-1L
CONTACTOR
EHDB Series Information
- 24~600 VAC/VDC Coils
- Make 300 VDC
- Break 160 VDC
- UL; CSA Approved
- Up to 960 Amps
- 2 and 3 Poles
- DC Control Operation Available
Documents & Resources Links
Videos
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | SKU | Price | Action |
|---|---|---|---|---|---|---|
|
|
CAL16-11A | Auxiliary Contact Block, 1NO/1NC | ABB Contactors | CAL16-11A-ABBG |
Price unavailable
|
|
|
CAL16-11B | Auxiliary Contact Block, 1NO/1NC | ABB Contactors | CAL16-11B-ABBG |
Price unavailable
|
|
|
CAL16-11C | Auxiliary Contact Block, 1NO/1NC | ABB Contactors | CAL16-11C-ABBG |
Price unavailable
|
|
|
CAL16-11D | Auxiliary Contact Block, 1NO/1NC | ABB Contactors | CAL16-11D-ABBG |
Price unavailable
|
|
|
EHDBCK360-2 | CONTACT KIT, 2-POLE N/O CONTACTOR SIZE EHDB360 | ABB Contactors | EHDBCK360-2-ABBG |
Price unavailable
|
|
|
EHDBCK360-NC | CONTACT BLOCK, 1-POLE N/C ONLY N/C REPLACEMENT CONTACT FOR EHDB360 SERIES CONTACTORS | ABB Contactors | EHDBCK360-NC-ABBG |
Price unavailable
|
|
|
EHDBRC360-1 | COIL, 120VAC, CONTACTOR SIZE EHDB360 WITHDRAWAL TYPE | ABB Contactors | EHDBRC360-1-ABBG |
Price unavailable
|
