Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

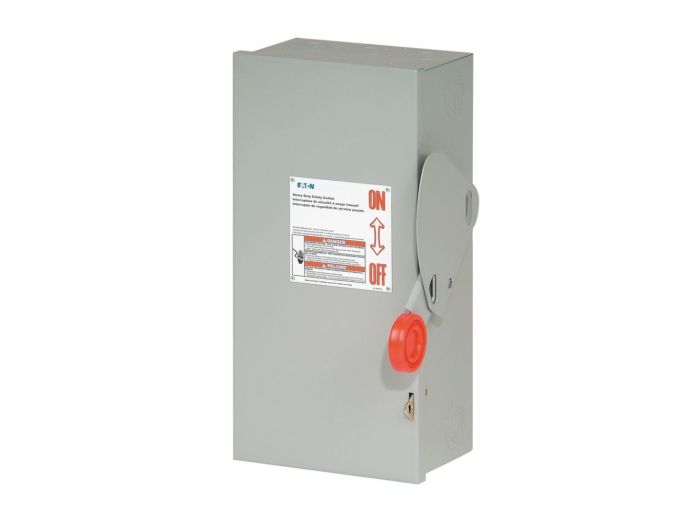

DH361URK Eaton Safety Switches, DH Series
MFG #:
DH361URK
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 30 A, NEMA 3R, Painted galvanized steel, Non-Fusible, Three-pole, 5 at 250 Vdc, Three-wire, 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 10 at 240 Vac TD 3 Ph
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | DH361URK |
| Manufacturer | Eaton |
| Product Series | DH |
| Family Series | Eaton Safety Switches, DH Series |
| Switch Type | Heavy Duty |
| Number of Poles | 3 |
| Voltage | 600 V |
| Current Rating | 30 A |
| Fusible | No |
| Neutral | No |
| Composition | Metallic |
| NEMA Rating | NEMA 3R |
| Approvals | cUL, UL |
| H x W x D | 8.50 " x 9.50 " x 16.50 " |
| Net Weight | 16 lbs |
| Gross Weight | 16 lbs |
Description
Safety Switches, DH Series
Item #
DH361URK
30A/3P HD NF Sfty Sw 600V N3R
DH Series Information
Cutler Hammer Safety Switches provide a means to manually connect or disconnect the load from the source. Fusible safety switches provide a means to manually open and close a circuit and overcurrent protection by means of installed fuses. Also commonly referred to as a disconnect switch or disconnect, Cutler Hammer Safety switches are available from 30 ‑ 1200 amperes in a variety of types:
General Duty ‑ For residential and commercial applications. Suitable for light‑duty motor circuits and service entrance from 30 to 600 amperes.
Heavy‑Duty ‑ For heavy commercial and industrial applications where reliable performance and service continuity are critical.
Double Throw ‑ Used to transfer service from a normal power source to an alternate source or to switch from one load circuit to another.
General Duty ‑ For residential and commercial applications. Suitable for light‑duty motor circuits and service entrance from 30 to 600 amperes.
Heavy‑Duty ‑ For heavy commercial and industrial applications where reliable performance and service continuity are critical.
Double Throw ‑ Used to transfer service from a normal power source to an alternate source or to switch from one load circuit to another.
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Series | Switch Type | Price | Action |
|---|---|---|---|---|---|---|---|
|
DH361FRK | Eaton Enhanced visible blade single-throw safety switch, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp 1/3PH 480, 600 V, 14-2 Cu/Al | 600 V | DH | Heavy Duty |
Price unavailable
|
|
|
DH361NRK | Eaton Enhanced visible blade single-throw safety switch, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp 1/3PH 480, 600 V, 14-2 Cu/Al | 600 V | DH | Heavy Duty |
Price unavailable
|
