Specifications
| Manufacturer Part Number | ECP4102T-4 |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | CP |
| Family Series | Baldor-ABB Motors Motors, CP Series |
| Type | High Efficiency, Severe Duty |
| Horsepower | 20 hp |
| Speed | 1,200 RPM |
| RPM | 1,200 RPM |
| Number of Poles | 6 |
| Phase | 3 |
| NEMA Frame | 286T |
| AC Voltage | 460 VAC |
| Nominal Voltage | 415 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 26 A |
| Service Factor | 1.15 |
| Inverter Duty | No |
| Composition | Cast Iron |
| Bearing Type | Re-Greasable |
| Length | 27.93 " |
| Net Weight | 449.999 lbs |
| Gross Weight | 449.999 lbs |
Description

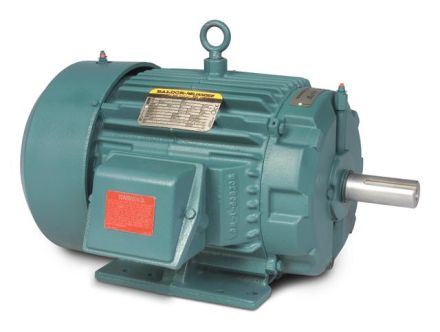

Motors, CP Series
Item #
ECP4102T-4
20HP, 1180RPM, 3PH, 60HZ, 286T, 1054M
CP Series Information
- Processing Industry Applications Requiring Protection against Corrosion Caused By Severe Environmental Operating Conditions
- Oversized Rotatable Cast Iron Conduit Box, Cast Iron Frames, Corrosion Resistant Hardware
- Corrosion Resistant Epoxy Finish
- Regreasable Ball or Roller Bearings
- 1.15 Service Factor
- Class F Insulation
