Specifications

Specifications
Manufacturer Part Number	170001.60
Manufacturer	Leeson
Product Series	Three Phase TEFC
Family Series	Leeson Motors, Three Phase TEFC Series
Type	General Purpose
Horsepower	20 hp
Speed	1,200 RPM
RPM	1,200 RPM
Number of Poles	6
Phase	3
NEMA Frame	286T
Nominal Voltage	208 VAC, 240 VAC, 480 VAC
Enclosure	Totally Enclosed Fan Cooled
Mounting	Foot Mount, Rigid
Current Rating	54 A
Service Factor	1.25
Composition	Cast Iron
Bearing Type	Ball
Length	27.83 "
Approvals	CSA, UL
Net Weight	0 lbs
Gross Weight	0 lbs

Description

Motors, Three Phase TEFC Series

Item #

170001.60

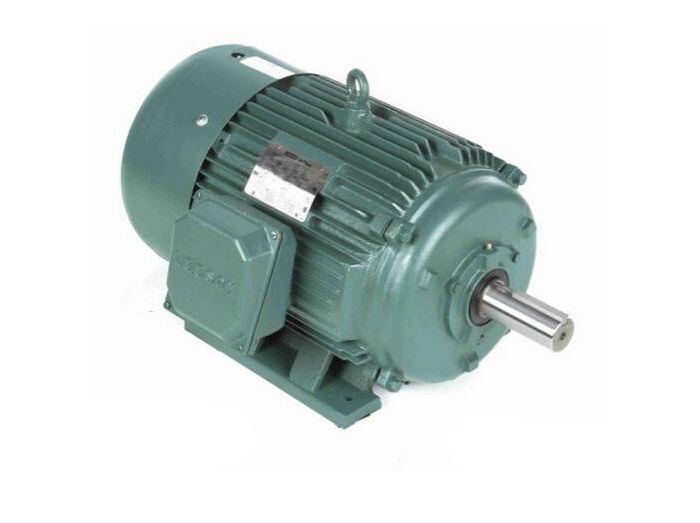

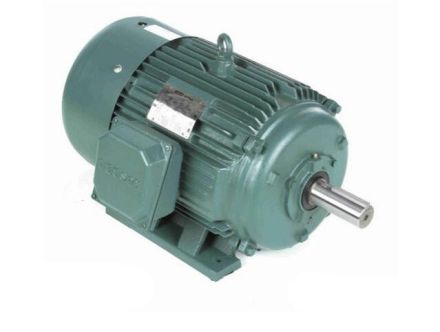

Motor, 20HP, 208-230/460V, 1185RPM

Three Phase TEFC Series Information

Standard, EPACT and Premium efficient ratings
Inverter‑rated
Class B insulation systems ‑ 42, 48 and 56 frames
Class F insulation system ‑ 140 frame and higher
Shielded ball bearings for direct coupled applications

Applications: For use where exposure to water, dust and corrosives exists. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications.

Continuous duty
Dynamically balanced rotors
1‑year warranty on Standard efficient motors
2‑year warranty on EPACT efficient motors
3‑year warranty on Premium efficient motors
Torques exceed NEMA performance standards
UL recognized and CSA certified

Documents & Resources

Documents & Resources Links

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Mounting	Series	Price	Action
	ECP4102T-4	20HP, 1180RPM, 3PH, 60HZ, 286T, 1054M	415 VAC, 480 VAC	Foot Mount, Rigid	CP	Price unavailable
	EM4102T	20HP, 1180RPM, 3PH, 60HZ, 286T, 1054M	208 VAC, 240 VAC, 415 VAC, 480 VAC	Foot Mount, Rigid	M	Price unavailable
