Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

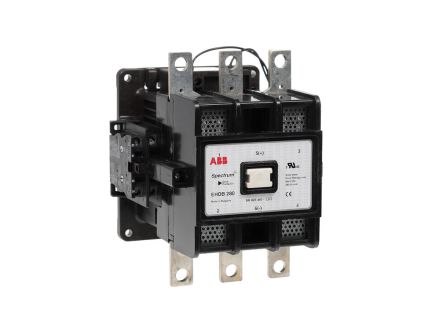

EHDB220C-1L ABB Contactors, EHDB Series
MFG #:
EHDB220C-1L
Drive Contactor, 3-P 2NO/1NC, 120VAC Coil, Includes 1NO & 1NC Auxiliary Contacts, Less Terminal Lugs -SK825485-AF-
Specifications
| Manufacturer Part Number | EHDB220C-1L |
|---|---|
| Manufacturer | ABB |
| Product Series | EHDB |
| Family Series | ABB Contactors, EHDB Series |
| Coil Type | Magnetic |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Poles | 2NO, 1NC |
| Mechanically Interlocked | No |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Box Lug |
| H x W x D | 6.60 " x 5.35 " x 7.85 " |
| Net Weight | 10.65 lbs |
| Gross Weight | 10.65 lbs |
Description
Contactors, EHDB Series
Item #
EHDB220C-1L
3P DRIVE CONTR.220A,120/60,L/T
EHDB Series Information
- 24~600 VAC/VDC Coils
- Make 300 VDC
- Break 160 VDC
- UL; CSA Approved
- Up to 960 Amps
- 2 and 3 Poles
- DC Control Operation Available
Documents & Resources Links
Videos
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Poles | Price | Action |
|---|---|---|---|---|---|---|
|
|
CAL16-11B | Auxiliary Contact Block, 1NO/1NC | ABB Contactors |
Price unavailable
|
||
|
CAL16-11C | Auxiliary Contact Block, 1NO/1NC | ABB Contactors |
Price unavailable
|
||
|
EHDBCK220-2 | CONTACT KIT, 2-POLE N/O CONTACTOR SIZE EHDB220 | ABB Contactors | 2 |
Price unavailable
|
|
|
EHDBCK220-NC | CONTACT KIT, 1-POLE N/C ONLY N/C REPLACEMENT CONTACT FOR EHDB220 SERIES CONTACTORS | ABB Contactors |
Price unavailable
|
||
|
EHDBRC220-1 | Replacement Coil, 120VAC | ABB Contactors |
Quote Required
|
||
|
EHTK210 | Terminal Lug Kit, 3 Lugs/Pk, Accepts (1)6AWG-250MCM Wire/Lug | ABB Contactors |
Price unavailable
|
||
|
VH300 | Mechanical Interlock, For Use Between (2)EH75,210,260,300 Series Contactors | ABB Contactors |
Price unavailable
|
