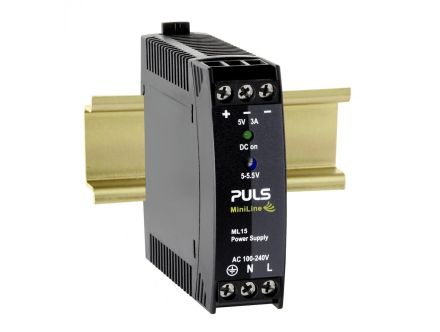

ML15.051 Puls Power Supplies, Mini Line Series
Power Supply, 5VDC, 3A, 1Ph, 15W,
MFG Item Number
ML15.051
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Power Supplies, Mini Line Series
Item #
ML15.051
Power Supply, 5VDC, 3A, 1Ph, 15W,
Mini Line Series Information
- Single Output
- 5~56 VDC Outputs Available
- Up to 7.5 Amp Output Available
- 85~550 VAC Inputs Available
- CE, UL and C‑UL Approvals
- DIN Rail Mount
- Wide DC Input Voltage
- Rugged Plastic Housing
Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | ML15.051 |
| Manufacturer | Puls |
| Product Series | Mini Line |
| Family Series | Puls Power Supplies, Mini Line Series |
| Description | Power Supply, 5VDC, 3A, 1Ph, 15W, 100-240VAC/85-375VDC Input, DIN Mnt, Screw Terminals |
| Power | 15 W |
| Nominal Input Voltage | 120 VAC, 208 VAC, 240 VAC |
| AC Voltage | 100-240 VAC |
| Input Frequency | 60 Hz |
| Phase | 1 |
| Nominal Output Voltage | 6 VDC |
| Output VDC | 5 VDC |
| Output Current | 3 A |
| Number of Outputs | 1 |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Encapsulated | No |
| Output Voltage Adj. | Yes |
| Overvoltage Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Power Factor Correction | No |
| Parallel Operation | Yes |
| Remote Sensing | No |
| Remote On/Off Control | No |
| Operating Temperature | 14-158 °F |
| Approvals | CE, CSA, cURus, UL508, UL60950 |
| H x W x D | 1.10 " x 3.62 " x 4.92 " |
| Net Weight | 0.29 lbs |
| Gross Weight | 0.4409 lbs |
