Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

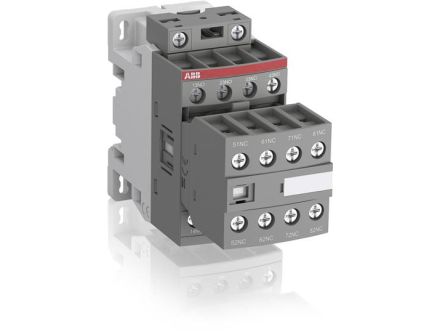

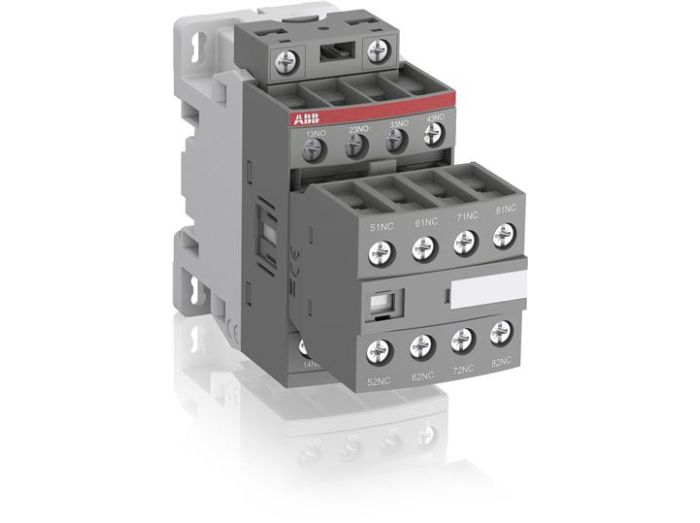

NFZ62E-21 ABB Control Relays, NFZ Series
MFG #:
NFZ62E-21
NFZ contactor relays are used for switching auxiliary and control circuits. NFZ contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V
Specifications
| Manufacturer Part Number | NFZ62E-21 |
|---|---|
| Manufacturer | ABB |
| Product Series | NFZ |
| Family Series | ABB Control Relays, NFZ Series |
| Nominal Voltage | 24 VAC, 48 VAC, 24 VDC, 48 VDC |
| Voltage | 24-60 VAC, 20-60 VDC |
| Number of Poles | 8 |
| Contact Configuration | 6NO, 2NC |
| Thermal Current Rating | 16 A |
| Termination | Screw |
| Mounting | DIN Rail, Screw |
| Approvals | CCC, CE, GOST, UL |
| H x W x D | 1.85 " x 3.43 " x 4.45 " |
| Net Weight | 0.7938 lbs |
| Gross Weight | 0.86 lbs |
Description
Control Relays, NFZ Series
Item #
NFZ62E-21
RELAY, 6NO, 2NC, 24-60V50/60HZ, 20-6
NFZ Series Information
- NFZ contactor relays are used for switching auxiliary and control circuits.
- NFZ contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max.
- Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. NF contactor relays can manage large control voltage variations.
- One coil can be used for different control voltages used worldwide without any coil change.
- NFZ contactor relays allow direct control by PLC‑output = 24 V DC 500 mA and obtain a reduced holding coil consumption.
- NFZ contactor relays withstand short voltage dips and voltage sags (SEMI F47‑0706 compliance) between 24...250 V 50/60 Hz NFZ contactor relays have built‑in surge protection and do not require additional surge suppressors
- Control Circuit: AC or DC operated
