Series

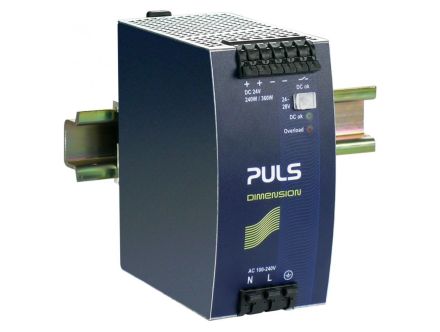

QS10.241 Puls Power Supplies, Q Series

MFG #:

QS10.241

Power Supply, 24VDC, 10A, 1Ph, 240W, 100-240VAC Input, 24-28VDC Output, 124mmHx60mmWx117mmD, Spring Terminal

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

QS10.241 Puls Power Supplies, Q Series

Name: QS10.241 Puls Power Supplies, Q Series
Brand: Puls
SKU: QS10.241-PULS
Price: 531.68 USD
Availability: InStock

MFG #:

QS10.241

Power Supply, 24VDC, 10A, 1Ph, 240W, 100-240VAC Input, 24-28VDC Output, 124mmHx60mmWx117mmD, Spring Terminal

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Country of Origin	China
Manufacturer Part Number	QS10.241
Manufacturer	Puls
Product Series	Q
Family Series	Puls Power Supplies, Q Series
Power	240 W
Nominal Input Voltage	120 VAC, 208 VAC, 240 VAC
AC Voltage	100-240 VAC
Input Frequency	47-63 Hz
Phase	1
Nominal Output Voltage	24 VDC
Output VDC	24-28 VDC
Output Current	10 A
Number of Outputs	1
Mounting	DIN Rail
Enclosed	Yes
Encapsulated	No
Output Voltage Adj.	Yes
Overvoltage Protection	Yes
Overload Protection	Yes
Short Circuit Protection	Yes
Power Factor Correction	No
Parallel Operation	Yes
Remote Sensing	No
Remote On/Off Control	No
Operating Temperature	-13-158 °F
Approvals	CE, cULus, cURus, UL1604 CLASS 1 DIV 2, UL508, UL60950
H x W x D	3.75 " x 5.50 " x 6.00 "
Net Weight	1.9844 lbs
Gross Weight	2.425 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Mounting	Series	Price	Action
	QS10.241-A1	Power Supply, 24VDC, 10A, 1Ph, 240W, 120-240VAC 1Ph Intput, 10-9A Output, Includes Atex Approval	100-240 VAC	DIN Rail	Q	Price unavailable
	QS10.241-C1	POWER SUPPLY, 24VDC, 10A, 1PH, 240W 24-28VDC, 10.0-9.0A, WITH CONFORMAL COATING	100-240 VAC	DIN Rail	Q	Price unavailable

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Mounting	Series	Price
UF20.241	BUFFER UNIT, TYP 310ms @24V, 20A		UF	Price unavailable
YR2.DIODE	Redundancy Module, 10-60VDC, 2x10A, Decoupling Module, Y-Series, 20A Max Output Current Rating	DIN Rail	Dimension	Price unavailable
ZM1.WALL	MOUNTING BRACKET, (pkg / 2pcs) FOR PANEL MTG Q SERIES POWER SUPPLY			Price unavailable
ZM13.SIDE	MOUNTING BRACKET, FOR SIDE MOUNTING Q SERIES POWER SUPPLIES			Price unavailable
