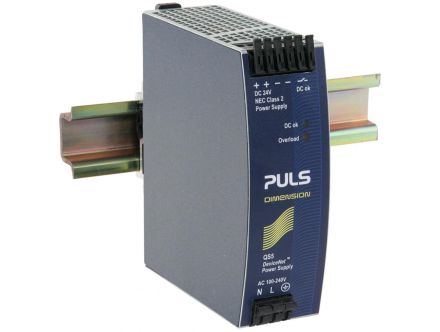

QS5.DNET Puls Power Supplies, Q Series
MFG #:
QS5.DNET
Power Supply, 24VDC, 3.8A, 1PH, 90W Devicenet Power Supply, 124mmHx40mmWx117mmD, Spring Terminal
View Full Specs
main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Puls
Series
Q

QS5.DNET Puls Power Supplies, Q Series

MFG #:
QS5.DNET
Power Supply, 24VDC, 3.8A, 1PH, 90W Devicenet Power Supply, 124mmHx40mmWx117mmD, Spring Terminal
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Country of Origin China
Manufacturer Part Number QS5.DNET
Manufacturer Puls
Product Series Q
Family Series Puls Power Supplies, Q Series
Power 90 W
Nominal Input Voltage 120 VAC, 208 VAC, 240 VAC
AC Voltage 100-240 VAC
Input Frequency 47-63 Hz
Phase 1
Nominal Output Voltage 24 VDC
Output VDC 24 VDC
Output Current 3.8 A
Number of Outputs 1
Mounting DIN Rail
Enclosed Yes
Encapsulated No
Output Voltage Adj. No
Overvoltage Protection Yes
Overload Protection Yes
Short Circuit Protection Yes
Power Factor Correction No
Parallel Operation Yes
Remote Sensing No
Remote On/Off Control No
Operating Temperature -13-158 °F
Approvals CE, cULus, cURus, UL1604 CLASS 1 DIV 2, UL508, UL60950
H x W x D 2.44 " x 5.51 " x 5.91 "
Net Weight 1.3669 lbs
Gross Weight 1.6534 lbs
