Series

Dimension

XT40.482 Puls Power Supplies, Dimension Series

MFG #:

XT40.482

Power Supply, 48VDC, 20A, 3PH, 960W, Semi-Regulated Switcher, 480V 3Ph, 124mmHx96mmWx157mmD, Screw Terminals

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

Dimension

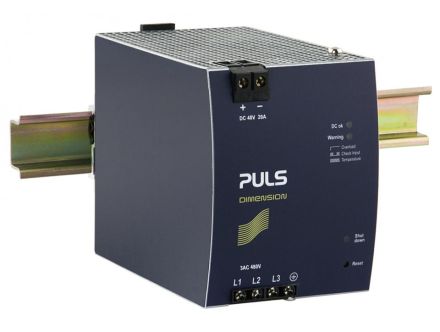

XT40.482 Puls Power Supplies, Dimension Series

Name: XT40.482 Puls Power Supplies, Dimension Series
Brand: Puls
SKU: XT40.482-PULS
Price: 1014.60 USD
Availability: InStock

MFG #:

XT40.482

Power Supply, 48VDC, 20A, 3PH, 960W, Semi-Regulated Switcher, 480V 3Ph, 124mmHx96mmWx157mmD, Screw Terminals

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Country of Origin	Czech Republic
Manufacturer Part Number	XT40.482
Manufacturer	Puls
Product Series	Dimension
Family Series	Puls Power Supplies, Dimension Series
Power	960 W
Nominal Input Voltage	480 VAC
AC Voltage	408-552 VAC
Input Frequency	47-63 Hz
Phase	3
Nominal Output Voltage	48 VDC
Output VDC	48 VDC
Output Current	20 A
Number of Outputs	1
Mounting	DIN Rail
Enclosed	Yes
Encapsulated	No
Output Voltage Adj.	No
Overvoltage Protection	Yes
Overload Protection	Yes
Short Circuit Protection	Yes
Power Factor Correction	No
Parallel Operation	No
Remote Sensing	No
Remote On/Off Control	No
Operating Temperature	-13-158 °F
Approvals	CE, cULus, cURus, UL1604 CLASS 1 DIV 2, UL508, UL60950
H x W x D	5.51 " x 5.91 " x 7.09 "
Net Weight	3.0863 lbs
Gross Weight	3.5273 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Mounting	Series	Price	Action
	UF20.481	BUFFER UNIT, TYP 150ms @48V, 20A		UF	Price unavailable
	YRM2.DIODE	REDUNDANCY MODULE WITH DIAGNOSTICS	DIN Rail	Dimension	Price unavailable
