Specifications
| Manufacturer Part Number | SU203M-C32 |
|---|---|
| Manufacturer | ABB |
| Product Series | SU200M |
| Family Series | ABB Circuit Breakers, SU200M Series |
| Poles | 3 |
| Current Rating | 32 A |
| Max Voltage | 240 VAC, 277/480 VAC |
| Trip Curve | C |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | DIN Rail |
| Neutral Pole | No |
| Terminal Type | Screw |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | No |
| Alarm Switch | Optional |
| UL Standard | 489 |
| Approvals | CSA, UL |
| H x W x D | 3.23 " x 4.76 " x 7.52 " |
| Net Weight | 0.825 lbs |
| Gross Weight | 2.59 lbs |
Description

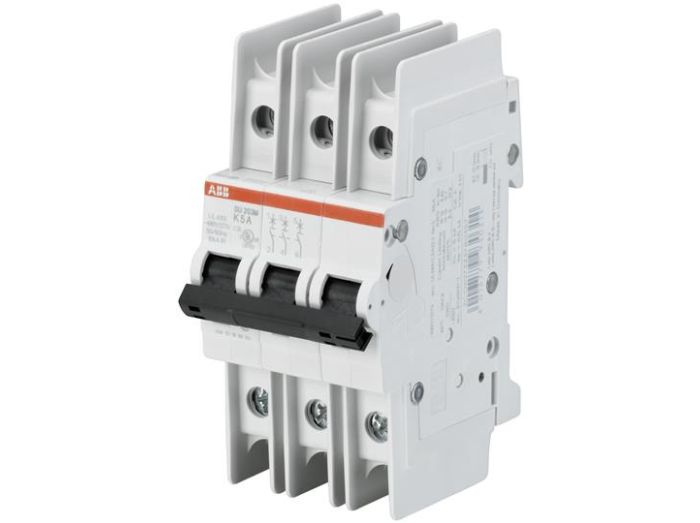

Circuit Breakers, SU200M Series
Item #
SU203M-C32
UL489 MCB 3P C 32A 480/277
SU200M Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Mounting | Series | Poles | Price | Action |
|---|---|---|---|---|---|---|---|
|
FAZ-C32/3-NA | Eaton FAZ branch protector,UL 489 Industrial miniature circuit breaker - supplementary protector,Medium levels of inrush current are expected,32 A,10 kAIC, 14 kAIC,Three-pole,277/480 V,5-10X /n,50-60 Hz,Screw terminals,C Curve | DIN Rail | FAZ | 3 |
Price unavailable
|
Added to Cart
SU203M-C32 ABB Circuit Breakers, SU200M Series, UL489 MCB 3P C 32A 480/277
Series SU200M
MFG #:
SU203M-C32
SU203M-C32 Miniature Circuit Breaker C-Char., 10kA, 32A, 3P UL489
Alternatives
FAZ-C32/3-NA Eaton Circuit Breakers, FAZ Series
Series FAZ
Series FAZ
MFG #:
FAZ-C32/3-NA
Eaton FAZ branch protector,UL 489 Industrial miniature circuit breaker - supplementary protector,Medium levels of inrush current are expected,32 A,10 kAIC, 14 kAIC,Three-pole,277/480 V,5-10X /n,50-60 Hz,Screw terminals,C Curve
