Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

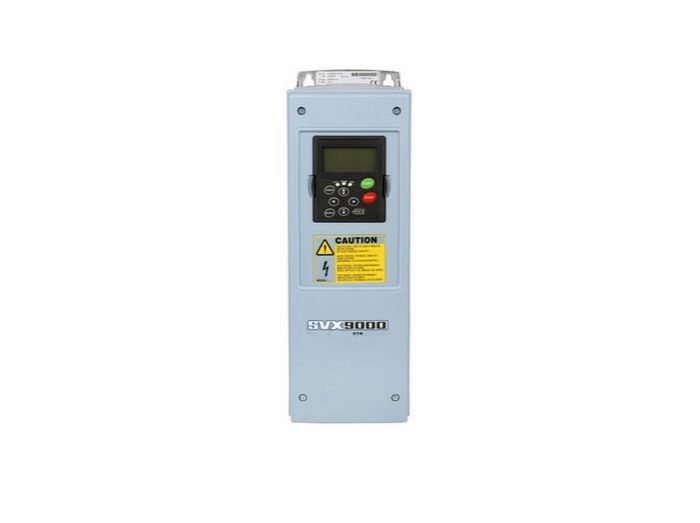

SVX007A2-4A1B1 Eaton Drives, SVX9000 Series
MFG #:
EATON-S10AA-D11000000
Item Number
SVX007A2-4A1B1
Eaton SVX adjustable frequency drive, 7.5HP, NEMA Type 12/IP54, 480V, FR5, Three-phase, EMC H, Standard Software, A/N keypad, Internal brake chopper, Standard boards
Specifications
| Country of Origin | Finland |
|---|---|
| Manufacturer Part Number | EATON-S10AA-D11000000 |
| Manufacturer | Eaton |
| Product Series | SVX9000 |
| Family Series | Eaton Drives, SVX9000 Series |
| Phase | 3 |
| HP (Constant Torque Rating) | 7.5 hp |
| HP (Variable Torque Rating) | 10 hp |
| Amps (Constant Torque Rating) | 12 A |
| Amps (Variable Torque Rating) | 16 A |
| Brake | DC Injection, Dynamic Braking Transistor Included |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Keypad Included |
| NEMA Rating | NEMA 12 |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-500 VAC |
| Frequency | 320 Hz |
| Frame Size | FR5 |
| Enclosure | Type 12 |
| Protection Rating | IP54 |
| Dynamic Braking | Included |
| Height | 16.5 " |
| Width | 5.6 " |
| Depth | 8.4 " |
| Comments | Standard control panel has a 3 line, alphanumeric LCD removable keypad. |
| H x W x D | 8.40 " x 5.60 " x 16.50 " |
| Net Weight | 17.9 lbs |
| Gross Weight | 24 lbs |
Description
Drives, SVX9000 Series
Item #
SVX007A2-4A1B1
SVX9000 7.5HP 480V N12 BC ALFA
SVX9000 Series Information
- Performance Drive
- Open Loop Vector
- 0.75 ‑ 200hp
- 208V to 480V Models
- NEMA 1 & 12 Available
- Steady state speed error: < 0.5%
- Torque rise time: < 10 ms
- Low ripple in the torque
- High immunity to resonance vibrations
- High starting torque: 200% (depends on motor/drive sizing)
- High starting current: 2.0 x IH
- Suitable for multi‑motor drive systems
- High‑speed applications, max output frequency 7200 Hz (with special application)
Documents & Resources Links

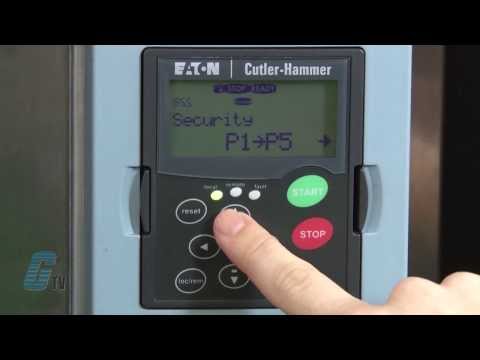

Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
DG1-34012FB-C54C | Eaton PowerXL DG1 variable frequency drive, 380-500V input 5.5 kW 7.5 Hp CT 3ph 50/60 Hz 12A o/p IP54/type 12 FR2 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper | 380-500 VAC | Panel | DG1 |
Price unavailable
|
Added to Cart

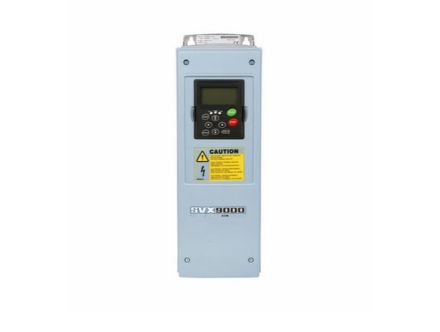

SVX007A2-4A1B1 Eaton Drives, SVX9000 Series, SVX9000 7.5HP 480V N12 BC ALFA
