Specifications
Country of Origin	Mexico
Manufacturer Part Number	T12C2J4
Manufacturer	US Motors
Family Series	US Motors Motors
Type	Capacitor Start, General Purpose
Horsepower	1/2 hp
Kilowatts	0.4 kW
Speed	1,725 RPM
RPM	1,725 RPM
Number of Poles	4
Phase	1
Frequency	60 Hz
NEMA Frame	48
AC Voltage	115 VAC, 208-230 VAC
Nominal Voltage	120 VAC, 208 VAC, 240 VAC
Enclosure	Totally Enclosed Fan Cooled
Mounting	Rigid
Current Rating	9 A, 4.3-4.5 A
Composition	Rolled Steel
Overload Protection	None
H x W x D	10.63 " x 10.13 " x 14.00 "
Net Weight	23 lbs
Gross Weight	23 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Mounting	Series	Price	Action
	L3409	.5HP, 1725RPM, 1PH, 60HZ, 48, 3421L	120 VAC, 208 VAC, 240 VAC	Foot Mount, Rigid	L	Price unavailable

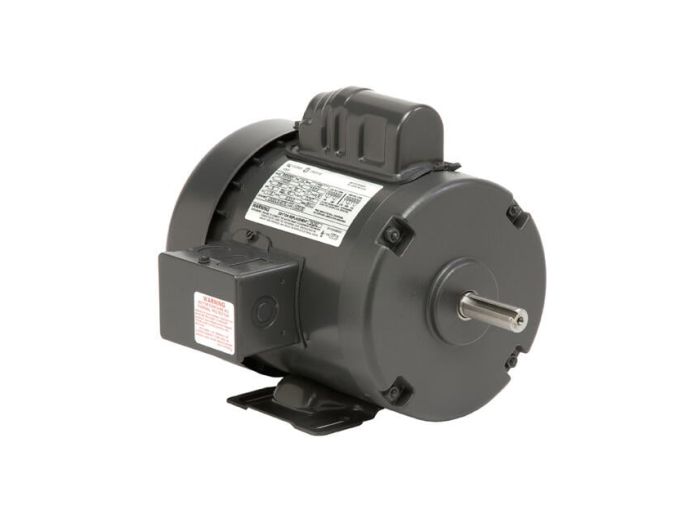

T12C2J4 US Motors Motors
