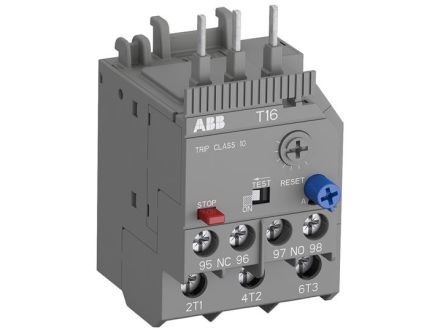

T16-10 ABB Overload Relays, T16 Series
MFG #:
T16-10
The T16-10 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features
Specifications
| Manufacturer Part Number | T16-10 |
|---|---|
| Manufacturer | ABB |
| Product Series | T16 |
| Family Series | ABB Overload Relays, T16 Series |
| Type | Bimetallic |
| Current Rating | 7.6-10 A |
| Poles | 3 |
| Output Contacts | 1NO, 1NC |
| Trip Class | Class 10 |
| Reset Type | Automatic, Manual |
| Connection Type | Wire |
| Ambient Temperature | -13-140 °F |
| Approvals | CSA, IEC, UL |
| H x W x D | 2.48 " x 1.89 " x 3.23 " |
| Net Weight | 0.23 lbs |
| Gross Weight | 0.27 lbs |
Description
Overload Relays, T16 Series
Item #
T16-10
TOL, AS/L, B/C, CLASS-10, 7.60-10.0A
T16 Series Information
- Overload protection‑ trip class 10.
- Phase loss sensitivity.
- Adjustable current setting for overload protection.
- Trip‑free mechanism.
Thermal overload relays are economic electromechanical protection devices for the main circuit. They are used mainly to protect motors against overload and phase failures. Starter combinations are setup together with contactors.
- Direct mounting onto mini contactors or block contactors.
- Suitable for three‑ and single‑ phase application
- Automatic or manual reset selectable.
