TCP2G100
Macromatic Protection Relays, TCP Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

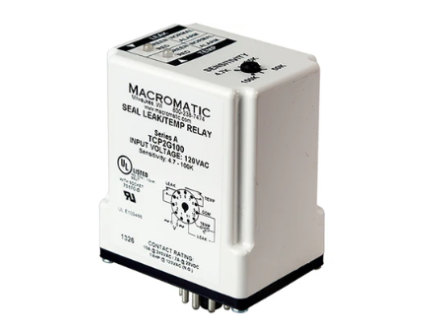

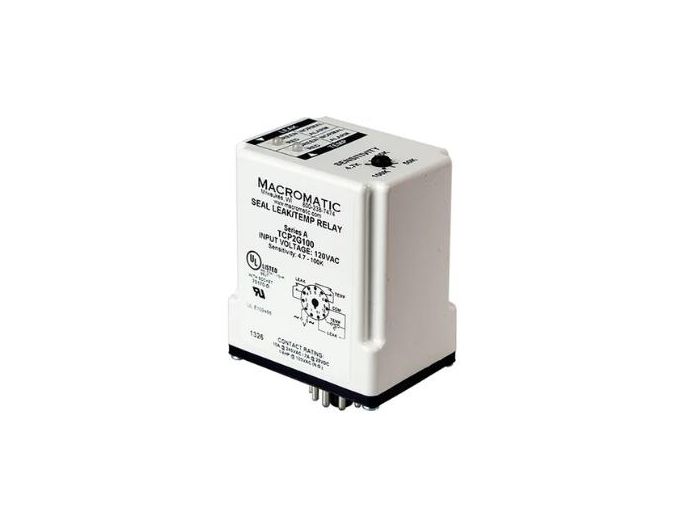

TCP2G100 Macromatic Protection Relays, TCP Series
Temp/Seal Leak Relay, 120VAC,
MFG Item Number
TCP2G100
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Protection Relays, TCP Series
Item #
TCP2G100
Temp/Seal Leak Relay, 120VAC,
TCP Series Information
- Monitors Submersible Pumps for Over Temperature & Seal Leakage
- Auto Reset for Over Temperature
- Two Adjustable Sensitivity Ranges for Seal Leakage
- Low‑Profile Adjustment Knob
- Full Status Indication on Top of Unit for Easy Troubleshooting
- Utilizes industry‑standard 11 pin octal socket
Specifications
| Manufacturer Part Number | TCP2G100 |
|---|---|
| Manufacturer | Macromatic |
| Product Series | TCP |
| Family Series | Macromatic Protection Relays, TCP Series |
| Description | Temp/Seal Leak Relay, 120VAC, 4.7-100K Ohm Sensitivity Range, Auto Reset, 11-Pin Circ Base |
| Phase | 1 |
| Voltage | 120 V, 240 V, 28 V |
| Line Voltage | 120 V |
| Current Rating | 14 A |
| Hi Pwr (Over Vltg) Trip | No |
| Variable Point Trip | No |
| Var Restart Delay | No |
| Manual Reset | No |
| Type of Display | LED Status Indicator |
| Mounting | DIN Rail |
| Output Relay | DPDT |
| Approvals | CE, cURus, UL |
| Comments | Mechanical: 10,000,000 operations, Full Load: 100,000 operations |
| H x W x D | 1.84 " x 2.52 " x 4.26 " |
| Net Weight | 0.4235 lbs |
| Gross Weight | 0.4235 lbs |
