Series

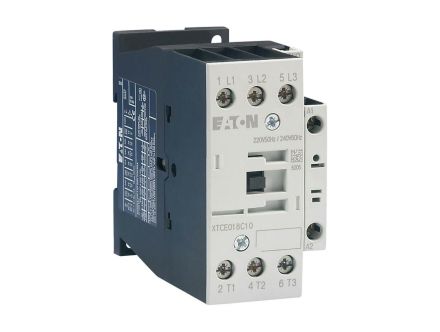

XTCE025C10A Eaton Contactors, XT Series

MFG #:

XTCE025C10A

Eaton XT IEC contactor, 25A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 25A, Frame C, 45 mm, 50-60 Hz, 2, 3, 5/ 7.5, 10, 15, 20 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage non-reversing contactor

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

XTCE025C10A Eaton Contactors, XT Series

Name: XTCE025C10A Eaton Contactors, XT Series
Brand: Eaton
SKU: XTCE025C10A-CHGP
Price: 164.20 USD
Availability: InStock

MFG #:

XTCE025C10A

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Manufacturer Part Number	XTCE025C10A
Manufacturer	Eaton
Product Series	XT
Family Series	Eaton Contactors, XT Series
Type	AC Non-Reversing IEC
Nominal Coil Voltage	120 VAC
Coil Voltage	120 VAC
Coil Type	Magnetic
Poles	3NO
Frame Size	C
Auxiliary Contact	1NO
Termination	Screw
Overload Relays	C396, XTOB, XTOT
General Purpose (AC1)	40 A
UL Motor Switching (AC3)	25 A
H x W x D	1.85 " x 3.43 " x 3.90 "
Net Weight	0.9 lbs
Gross Weight	0.9894 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Series	Type	Price	Action
	CWM25-11-30V18	Contactor, 3-P N/O, 120VAC, 25A Includes 1NO/1NC Aux Contacts 7.5HP@230V/15HP@460VAC	CWM	AC Non-Reversing IEC	Price unavailable
	CE15FNS3AB	Eaton Freedom series IEC contactor, F-frame, Non-reversing, No overload relay, 32A, Three-pole, 2 hp max, Steel mounting plate, 1NO Side mounted auxiliary contact, 110/120 VAC, 50/60 Hz	Freedom	AC Non-Reversing IEC	Price unavailable

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	Type	Price
XTCEXFAC02	Auxiliary Contact Block, 2-N/C, Top Mount, for use with XT Series B-C Frame	Eaton Contactors	Auxiliary Contact	Price unavailable
XTCEXFAC04	Eaton Contactor Accessory Auxiliary Contact, Four-pole, Screw terminals, 4NC contact configuration, 16A conventional thermal rating, 6A at 220/230/240V, 3A at 380/400/415V, 1.5A at 500V rated operational voltage, Front mounting,	Eaton Contactors	Contactor	Price unavailable
XTCEXFAC11	Eaton motor control auxiliary contact, Two-pole, Screw terminals, 1NO-1NC contact configuration, 16A conventional thermal rating, 6A at 220/230/240V, 3A at 380/400/415V, 1.5A at 500V rated operational voltage, Front mounting	Eaton Contactors	Contactor	Price unavailable
XTCEXFAC20	Contactor Accessory - Auxiliary Contact, Two-pole, Screw terminals, 2NO contact configuration, 16A conventional thermal rating, 6A at 220/230/240V, 3A at 380/400/415V, 1.5A at 500V rated operational voltage, Front mounting,	Eaton Contactors	Contactor	Price unavailable
XTCEXFAC31	Contactor Accessory - Auxiliary Contact, Four-pole, Screw terminals, 3NO-1NC contact configuration, 16A conventional thermal rating, 6A at 220/230/240V, 3A at 380/400/415V, 1.5A at 500V rated operational voltage, Front mounting,	Eaton Contactors	Contactor	Price unavailable
XTCEXFAC40	Contactor Accessory - Auxiliary Contact, Four-pole, Screw terminals, 4NO contact configuration, 16A conventional thermal rating, 6A at 220/230/240V, 3A at 380/400/415V, 1.5A at 500V rated operational voltage, Front mounting,	Eaton Contactors	Contactor	Price unavailable
XTCEXSCC11	Contactor Accessory - Auxiliary Contact, Two-pole, Screw terminals, C Frame size, 1NO-1NC contact configuration, 10A conventional thermal rating, Side mounting	Eaton Contactors	Contactor	Price unavailable
