Specifications

Specifications
Country of Origin	Romania
Manufacturer Part Number	XTCE095F00T
Manufacturer	Eaton
Product Series	XT
Family Series	Eaton Contactors, XT Series
Type	AC Non-Reversing IEC
Nominal Coil Voltage	24 VAC
Coil Voltage	24 VAC
Coil Type	Magnetic
Poles	3NO
Frame Size	F
Auxiliary Contact	None
Termination	Screw
General Purpose (AC1)	110 A
UL Motor Switching (AC3)	95 A
H x W x D	7.00 " x 4.00 " x 7.25 "
Net Weight	5.2 lbs
Gross Weight	5.25 lbs

Description

Contactors, XT Series

Item #

XTCE095F00T

CONTACTOR 3P FVNR 95A FRAME F 24/50

XT Series Information

12~600 VAC/VDC Coils
Up to 640 HP @ 230V
Up to 1200 HP @ 460V
UL; CSA Approved
Up to 2000 Amps

The compact, space saving, and easy to install XT line of contactors is the efficient and effective solution for customer applications from 7A to 2000A. Non‑reversing contactors are most commonly used to switch motor loads in applications where running over current protection is either not required or is provided separately.

3 or 4 Poles
IP20 Finger and Back‑of‑Hand Proof
Large Ambient Temperature Range
Plug‑In Accessories for Reduced Installation Time
Panel or DIN Rail Mounting up to 65A

Documents & Resources

Documents & Resources Links

Videos

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Series	Type	Price	Action
	CWM105-00-30V04	Contactor, 3-P N/O, 24VAC, 105A No Aux Contacts 40HP@230V/75HP@460V	CWM	AC Non-Reversing IEC	Price unavailable
	CWM95-00-30V04	Contactor, 3-P N/O, 24VAC, 95A No Aux Contacts Included 30Hp@230V/60HP@460V	CWM	AC Non-Reversing IEC	Price unavailable

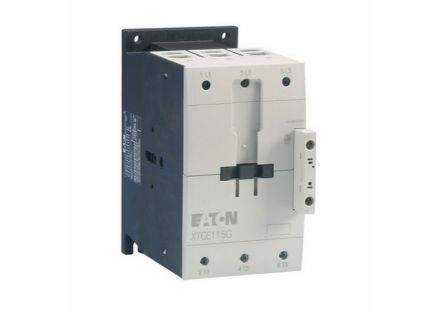

XTCE095F00T Eaton Contactors, XT Series
