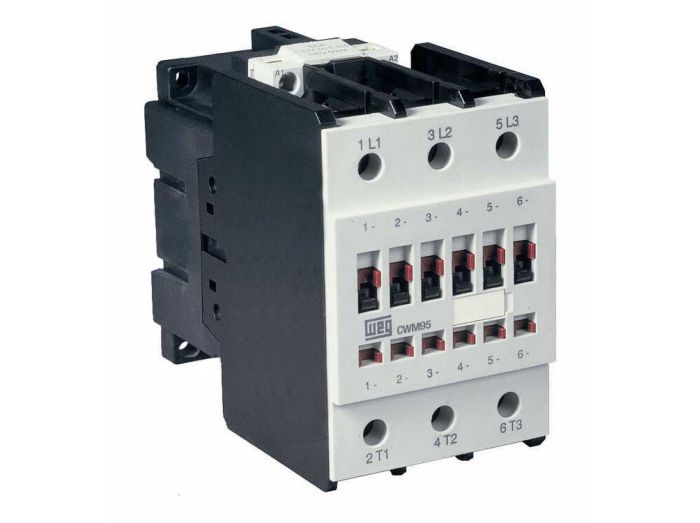

CWM95-00-30V04 WEG Electric Contactors, CWM Series

MFG #:

CWM95-00-30V04

Contactor, 3-P N/O, 24VAC, 95A No Aux Contacts Included 30Hp@230V/60HP@460V

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

CWM

CWM95-00-30V04 WEG Electric Contactors, CWM Series

Name: CWM95-00-30V04 WEG Electric Contactors, CWM Series
Brand: WEG Electric
SKU: CWM95-00-30V04-WEG
Price: 184.33 USD
Availability: BackOrder

MFG #:

CWM95-00-30V04

Contactor, 3-P N/O, 24VAC, 95A No Aux Contacts Included 30Hp@230V/60HP@460V

View Full Specs

Request Lead Time

Qty

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Manufacturer Part Number	CWM95-00-30V04
Manufacturer	WEG Electric
Product Series	CWM
Family Series	WEG Electric Contactors, CWM Series
Type	AC Non-Reversing IEC
Nominal Coil Voltage	24 VAC
Coil Voltage	24 VAC
Coil Type	Magnetic
Poles	3NO
Frame Size	CWM95
Auxiliary Contact	None
Termination	Screw
Overload Relays	RW117-1D3
General Purpose (AC1)	140 A
UL Motor Switching (AC3)	95 A
H x W x D	4.51 " x 2.95 " x 4.96 "
Net Weight	3.175 lbs
Gross Weight	3.175 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Part	Description	Series	Type	Price
CWM105-00-30V04	Contactor, 3-P N/O, 24VAC, 105A No Aux Contacts 40HP@230V/75HP@460V	CWM	AC Non-Reversing IEC	Price unavailable
XTCE095F00T	Eaton XT IEC contactor, 95A, 24 Vac, 50-60 Hz, 0NO-0NC, 95A, Frame F, 90 mm, 50-60 Hz, 40, 50, 100, 125 hp 3PH 200, 230, 460, 575 V, Three-pole, Non-reversing, XT IEC series, Screw terminals, Full voltage non-reversing contactor	XT	AC Non-Reversing IEC	Price unavailable
XTCE115G00T	Eaton XT IEC contactor, 115A, 24 Vac, 50-60 Hz, 0NO-0NC, 115A, Frame G, 90 mm, 50-60 Hz, 10, 25, 25/ 40, 50, 100, 100 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage non-reversing contactor	XT	AC Non-Reversing IEC	Price unavailable

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	Type	Price
RW117-1D3-U080	Overload, Bim Ol Relay Class10 63-80	RW	Bimetallic	Price unavailable
RW117-1D3-U097	Overload, Bim Ol Relay Class10 75-97	RW	Bimetallic	Price unavailable
RW117-1D3-U112	Overload, Bim Ol Relay Class10	RW	Bimetallic	Price unavailable
RWM112E-3-A4U056	Electronic Overload, 14A-56A	RWM		Price unavailable
RWM112E-3-A4U112	Electronic Overload, 28A-112A	RWM		Price unavailable
