XTCE150G00A
Eaton Contactors, XT Series

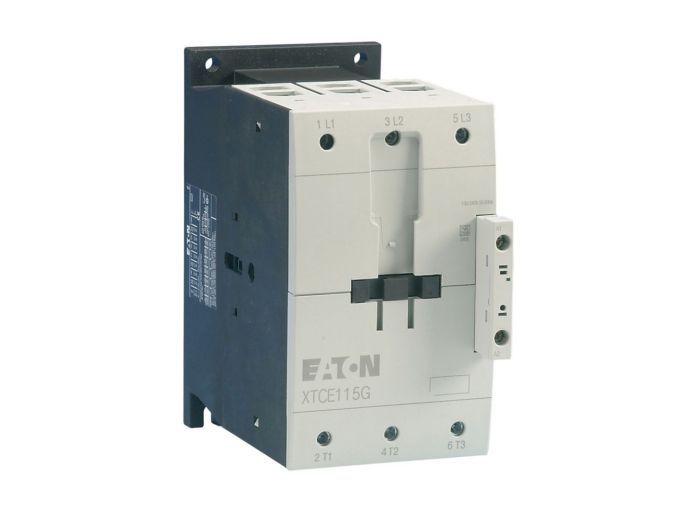

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
XTCE150G00A Eaton Contactors, XT Series
Cont 3P FVNR 150A FR G 100-120V50/60H
MFG Item Number
XTCE150G00A
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Contactors, XT Series
Item #
XTCE150G00A
Cont 3P FVNR 150A FR G 100-120V50/60H
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | XTCE150G00A |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Description | Eaton XT IEC contactor, 150A, 110 Vac 50 Hz, 120 Vac 60 Hz, 0NO-0NC, 150A, Frame G, 90 mm, 50-60 Hz, 10, 25, 30/ 40, 60, 125, 125 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVNR |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | G |
| Auxiliary Contact | None |
| Termination | Screw |
| Overload Relays | C396, XTOB, XTOT |
| General Purpose (AC1) | 160 A |
| UL Motor Switching (AC3) | 150 A |
| H x W x D | 4.00 " x 7.00 " x 7.25 " |
| Net Weight | 5.2 lbs |
| Gross Weight | 5.21 lbs |
