Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

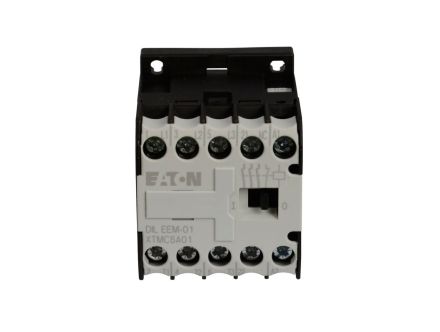

XTMC6A01L Eaton Contactors, XT Series
MFG #:
XTMC6A01L
Eaton XT IEC mini contactor, 6.60A, 380 Vac 50 Hz, 440 Vac 60 Hz, 1NC, 20A, 45 mm mini, 50-60 Hz, 0.25, 0.75, 1/ 1.5, 2, 3, 3 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, FVNR
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | XTMC6A01L |
| Manufacturer | Eaton |
| Product Series | XT |
| Family Series | Eaton Contactors, XT Series |
| Nominal Coil Voltage | 480 VAC |
| Coil Voltage | 440 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NC |
| Termination | Screw |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 6.6 A |
| H x W x D | 2.17 " x 1.81 " x 2.36 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
Description
Contactors, XT Series
Item #
XTMC6A01L
MINI Cont 3P FVNR 6A FR A 1NC 380/50 440
XT Series Information
- 12~600 VAC/VDC Coils
- Up to 640 HP @ 230V
- Up to 1200 HP @ 460V
- UL; CSA Approved
- Up to 2000 Amps
- 3 or 4 Poles
- IP20 Finger and Back‑of‑Hand Proof
- Large Ambient Temperature Range
- Plug‑In Accessories for Reduced Installation Time
- Panel or DIN Rail Mounting up to 65A
