C25DNF340A
Eaton Contactors, C25 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

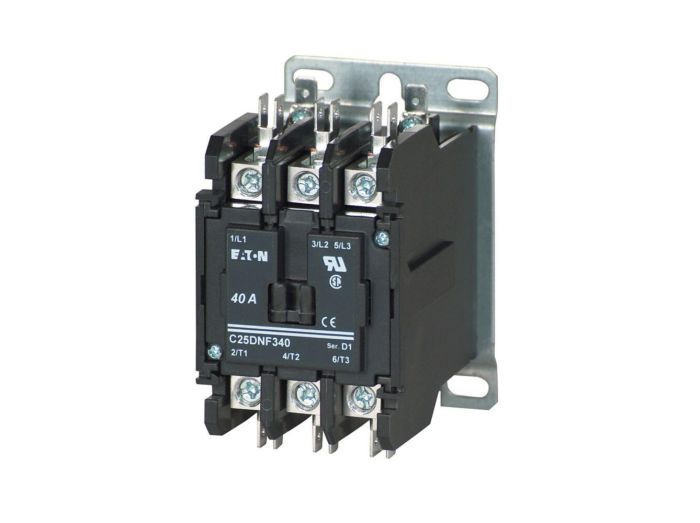

C25DNF340A Eaton Contactors, C25 Series
OP N-R 3P 40ADPCNT BXLGS W/QC120AC
MFG Item Number
C25DNF340A
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Contactors, C25 Series
Item #
C25DNF340A
OP N-R 3P 40ADPCNT BXLGS W/QC120AC
C25 Series Information
- 24~480 VAC Coils
- Up to 7‑1/2 HP @ 230V
- Up to 5.5 KW @ 230V
- UL; CSA Certified; IEC
- Up to 50 Amps
- Quick Connect Terminals
- Open Enclosure
- Double Break Contacts
- Class B Magnetic Coil
Specifications
| Manufacturer Part Number | C25DNF340A |
|---|---|
| Manufacturer | Eaton |
| Product Series | C25 |
| Family Series | Eaton Contactors, C25 Series |
| Description | Eaton definite purpose contactor, Quick, Class J, 600V, 60A, 40A, 110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and 3P, 40A, Contactor, 3P, 50A, Box lugs posidrive setscrew and quick connect terminals , Non-reversing |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 110-120 VAC |
| Inductive Current Rating | 40 A |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | D |
| Termination | Box Lug, Quick Connect |
| Shunt | No |
| Enclosure | Open |
| Resistive Rating | 50 A |
| Approvals | CSA, UR |
| H x W x D | 2.60 " x 3.80 " x 4.00 " |
| Net Weight | 0.9 lbs |
| Gross Weight | 0.9 lbs |
