Series

Dimension

CPS20.241 Puls Power Supplies, Dimension Series

MFG #:

CPS20-241

Power Supply, 24VDC, 20A, 1Ph, 480W, 100-240VAC 1Ph Input, DIN Mount, 20pct. Power Reserve, 65mmWx124mmHx127m

View Full Specs

Skip to the end of the images gallery

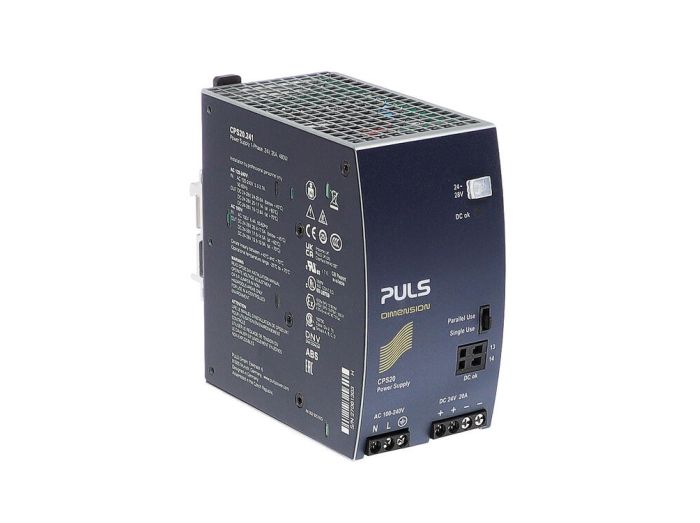

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

Dimension

CPS20.241 Puls Power Supplies, Dimension Series

Name: CPS20.241 Puls Power Supplies, Dimension Series
Brand: Puls
SKU: CPS20.241-PULS
Price: 508.50 USD
Availability: InStock

MFG #:

CPS20-241

Item Number

CPS20.241

Power Supply, 24VDC, 20A, 1Ph, 480W, 100-240VAC 1Ph Input, DIN Mount, 20pct. Power Reserve, 65mmWx124mmHx127m

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Country of Origin	China
Manufacturer Part Number	CPS20-241
Manufacturer	Puls
Product Series	Dimension
Family Series	Puls Power Supplies, Dimension Series
Power	480 W
Nominal Input Voltage	120 VAC, 240 VAC
AC Voltage	100-240 VAC
Input Frequency	60 Hz
Phase	1
Nominal Output Voltage	24 VDC
Output VDC	24-28 VDC
Output Current	20 A
Mounting	DIN Rail
Enclosed	Yes
Output Voltage Adj.	Yes
Overvoltage Protection	No
Overload Protection	No
Short Circuit Protection	No
Power Factor Correction	Yes
Parallel Operation	No
Remote Sensing	No
Remote On/Off Control	No
Operating Temperature	-13-158 °F
H x W x D	3.66 " x 5.51 " x 5.91 "
Net Weight	2.19 lbs
Gross Weight	2.425 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Mounting	Series	Price	Action
	CPS20.241-C1	Power Supply, 480W, 120-240VAC 1PH, 24-28VDC, 20-17.5A with Conformal Coating	100-240 VAC	DIN Rail	Dimension	Price unavailable

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Mounting	Series	Price
YR40.242	Redundancy Module, 12-28VDC, 40A, Dual Input	DIN Rail	Dimension	Price unavailable
YR40.245	Redundancy Module, 12-28VDC, 40A, Single Input with Plug Connector	DIN Rail	Dimension	Price unavailable
ZM13.SIDE	MOUNTING BRACKET, FOR SIDE MOUNTING Q SERIES POWER SUPPLIES			Price unavailable
ZM2.WALL	Mounting Bracket, For Panel Mounting Large Dimension Power Supplies			Price unavailable
