THR-3816U Macromatic Relays, THR Series
MFG #:
THR-3816U
Multi-Function Timer, 24-240VAC/ 12-125VDC Power, SPDT 10A Output, On Del/Off Del/Interval/Single Shot
View Full Specs

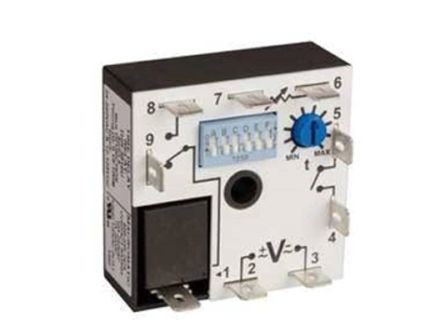

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Macromatic
Series
THR

THR-3816U Macromatic Relays, THR Series

MFG #:
THR-3816U
Multi-Function Timer, 24-240VAC/ 12-125VDC Power, SPDT 10A Output, On Del/Off Del/Interval/Single Shot
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Country of Origin United States
Manufacturer Part Number THR-3816U
Manufacturer Macromatic
Product Series THR
Family Series Macromatic Relays, THR Series
Operation Interval, Off Delay, On Delay, One-Shot
Contacts SPDT
Mounting Surface
Time Range Adjustment Onboard, Remote
Adjustment Operator Knob
Timing Range 0.1 s-100 Min
Max Time 100 Min
Nominal Coil Voltage 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC, 12 VDC, 24 VDC, 48 VDC
AC Voltage 24-240 VAC
DC Voltage 12-125 VDC
Contact Rating 10 A
Termination 0.250 in Flat Blade
Approvals CE
H x W x D 1.15 " x 2.00 " x 2.00 "
Net Weight 0.175 lbs
Gross Weight 0.195 lbs
