CWC09-01-30L03 WEG Electric Contactors

MFG #:

CWC09-01-30L03

MINI CONT 9A 1NC 24VDC LOW

View Full Specs

Skip to the end of the images gallery

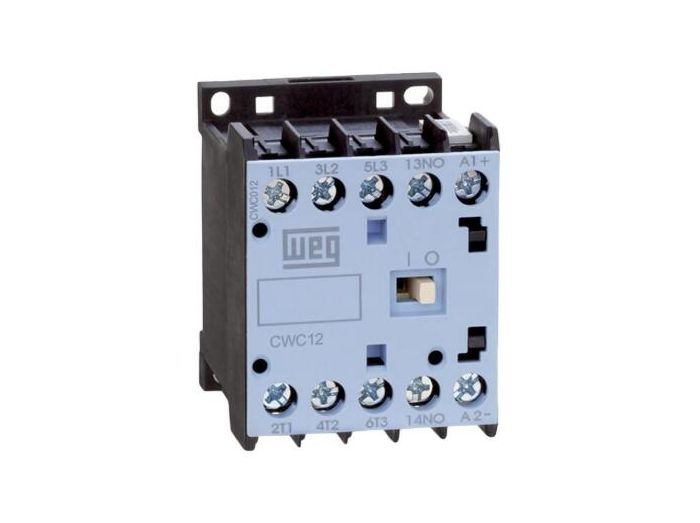

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

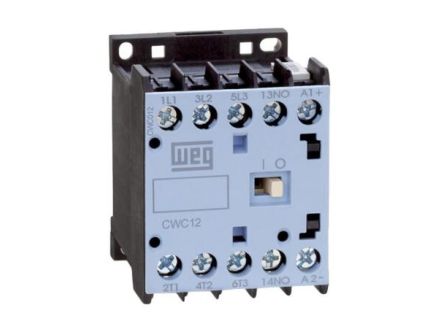

CWC09-01-30L03 WEG Electric Contactors

MFG #:

CWC09-01-30L03

MINI CONT 9A 1NC 24VDC LOW

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications

Specifications
Manufacturer Part Number	CWC09-01-30L03
Manufacturer	WEG Electric
Family Series	WEG Electric Contactors
Nominal Coil Voltage	24 VDC
Coil Voltage	24 VDC
Coil Type	Magnetic
Poles	3NO
Auxiliary Contact	1NC
Termination	Screw
General Purpose (AC1)	20 A
UL Motor Switching (AC3)	9 A
Mechanically Interlocked	Yes
Approvals	CE, cULus
H x W x D	2.05 " x 1.80 " x 2.25 "
Net Weight	0.504 lbs
Gross Weight	0.504 lbs

Accessories

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Series	Poles	Price	Action
	RW17-1D3-C063	Overload Relay, 0.40-0.63A, Class 10	RW	3	Price unavailable
	RW17-1D3-D004	Overload Relay, 0.28-0.40A, Class 10	RW	3	Price unavailable
	RW17-1D3-D008	Overload Relay, 0.56-0.80A, Class 10	RW	3	Price unavailable
	RW17-1D3-D012	BIM OL RELAY CLASS10 0.8-1.2		3	Price unavailable
	RW17-1D3-D018	Overload Relay, 1.20-1.80A, Class 10	RW	3	Price unavailable
	RW17-1D3-D028	Overload Relay, 1.80-2.80A, Class 10	RW	3	Price unavailable
	RW17-1D3-D063	Overload Relay, 4.00-6.30A, Class 10	RW	3	Price unavailable
	RW17-1D3-D125	Overload Relay, 8.00-12.5A, Class 10	RW	3	Price unavailable
	RW17-1D3-U004	Overload Relay, 2.80-4.00A, Class 10	RW	3	Price unavailable
	RW17-1D3-U008	Overload Relay, 5.60-8.00A, Class 10	RW	3	Price unavailable
	RW17-1D3-U010	Overload Relay, 7.00-10.0A, Class 10	RW	3	Price unavailable
	RW17-1D3-U015	Overload Relay, 10.0-15.0A, Class 10	RW	3	Price unavailable
	RW17-1D3-U017	Overload Relay, 11.0-17.0A, Class 10	RW	3	Price unavailable
