DCS800-S01-0090-05 ABB Drives, DCS800 Series
MFG #:
DCS800-S01-0090-05
MODULE DRIVE 2-QUADRANT NON-REVERSING, Product Family: DCS800, Horsepower: 20 HP 230 VAC / 50 HP 460 VAC, Output Current: 85 A 240 VDC / 88 A 500 VDC, Voltage: 230 VAC/240 VDC 460 VAC/500 VDC, UL TYPE OPEN IP00, Mounting: Wall-mount, 3-Phase
View Full Specs

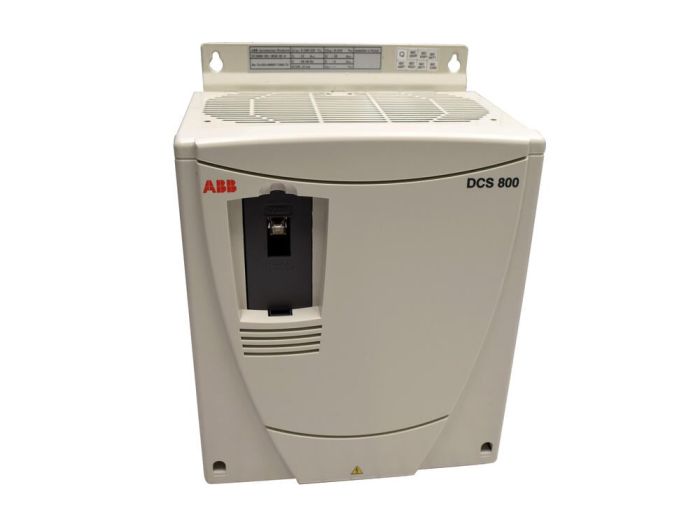

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
DCS800

DCS800-S01-0090-05 ABB Drives, DCS800 Series

MFG #:
DCS800-S01-0090-05
MODULE DRIVE 2-QUADRANT NON-REVERSING, Product Family: DCS800, Horsepower: 20 HP 230 VAC / 50 HP 460 VAC, Output Current: 85 A 240 VDC / 88 A 500 VDC, Voltage: 230 VAC/240 VDC 460 VAC/500 VDC, UL TYPE OPEN IP00, Mounting: Wall-mount, 3-Phase
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number DCS800-S01-0090-05
Manufacturer ABB
Product Series DCS800
Family Series ABB Drives, DCS800 Series
AC Voltage 240 VAC, 480 VAC
Input Current 73 A
Output Armature Voltage (DC) 240 VDC, 500 VDC
Phase 3
Output Field Current (DC) 6 A
Operating Temperature 32-104 °F
Max Armature Current (DC) 78 A
Nominal Input Voltage 240 VAC, 480 VAC
Field Supply Regulated
Regen No
Feedback Armature, Encoder, Tachometer
Operator Controls Keypad Included
Approvals CE, CSA, UL
Nominal Armature VDC 250 VDC, 500 VDC
H x W x D 15.00 " x 15.00 " x 21.00 "
Net Weight 31 lbs
Gross Weight 31 lbs
