Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

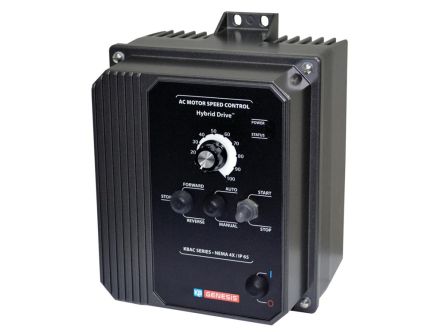

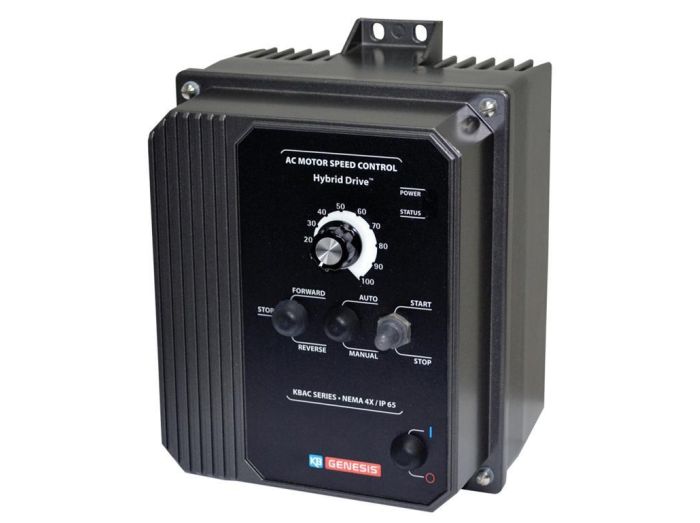

KBAC-24DGRAY KB Electronics Drives, KBAC Series
MFG #:
9987
Item Number
KBAC-24DGRAY
Drive, AC, 1HP, 240V, 3.6A, NEMA 4X, 115/230V 1-PH Input, 230V 3PH Output, NEMA 4X Enclosed, 9987
Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | 9987 |
| Manufacturer | KB Electronics |
| Product Series | KBAC |
| Family Series | KB Electronics Drives, KBAC Series |
| Phase | 1 |
| HP (Constant Torque Rating) | 1 hp |
| Amps (Constant Torque Rating) | 3.6 A |
| Brake | DC Injection |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Motor Control-Max Level | V/Hz (Scalar) |
| Mounting | Panel |
| Nominal Input Voltage | 90 VAC, 120 VAC, 208 VAC, 240 VAC |
| AC Voltage | 98-132 VAC, 177-264 VAC |
| Protection Rating | IP65 |
| Dynamic Braking | Not Available |
| Height | 9.53 " |
| Width | 5.51 " |
| Depth | 5.86 " |
| Comments | This drive features an analog control panel. |
| H x W x D | 5.95 " x 5.50 " x 9.50 " |
| Net Weight | 6.115 lbs |
| Gross Weight | 6.5 lbs |
Description
Drives, KBAC Series
Item #
KBAC-24DGRAY
Drive, AC, 1HP, 240V, 3.6A, NEMA 4X,
KBAC Series Information
The KBAC Series of Adjustable Frequency Drives consist of six inverter models rated for 1/8 to 5 horsepower motors. These drives are housed in heavy duty NEMA 4X / IP‑65 die‑cast aluminum washdown/watertight enclosures for indoor or outdoor use. Hybrid drives are a digital drive with an analog interface.
Documents & Resources Links
Videos
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | SKU | Price | Action |
|---|---|---|---|---|---|---|
|
KBAC-DA-24DON/OFFSWITCH | KBAC/DA-24D Power On/Off Switch Kit, 9482 | KB Electronics Drives | KBAC-DA-24DON/OFFSWITCH-KB |
Price unavailable
|
|
|
KBACFSRSWITCH | Forward/Stop/Reverse Switch Kit, For use with KBAC Series Drive, 9480 | KB Electronics Drives | KBACFSRSWITCH-KB |
Price unavailable
|
